Laboratory SS Top Hot Plate – Rectangular

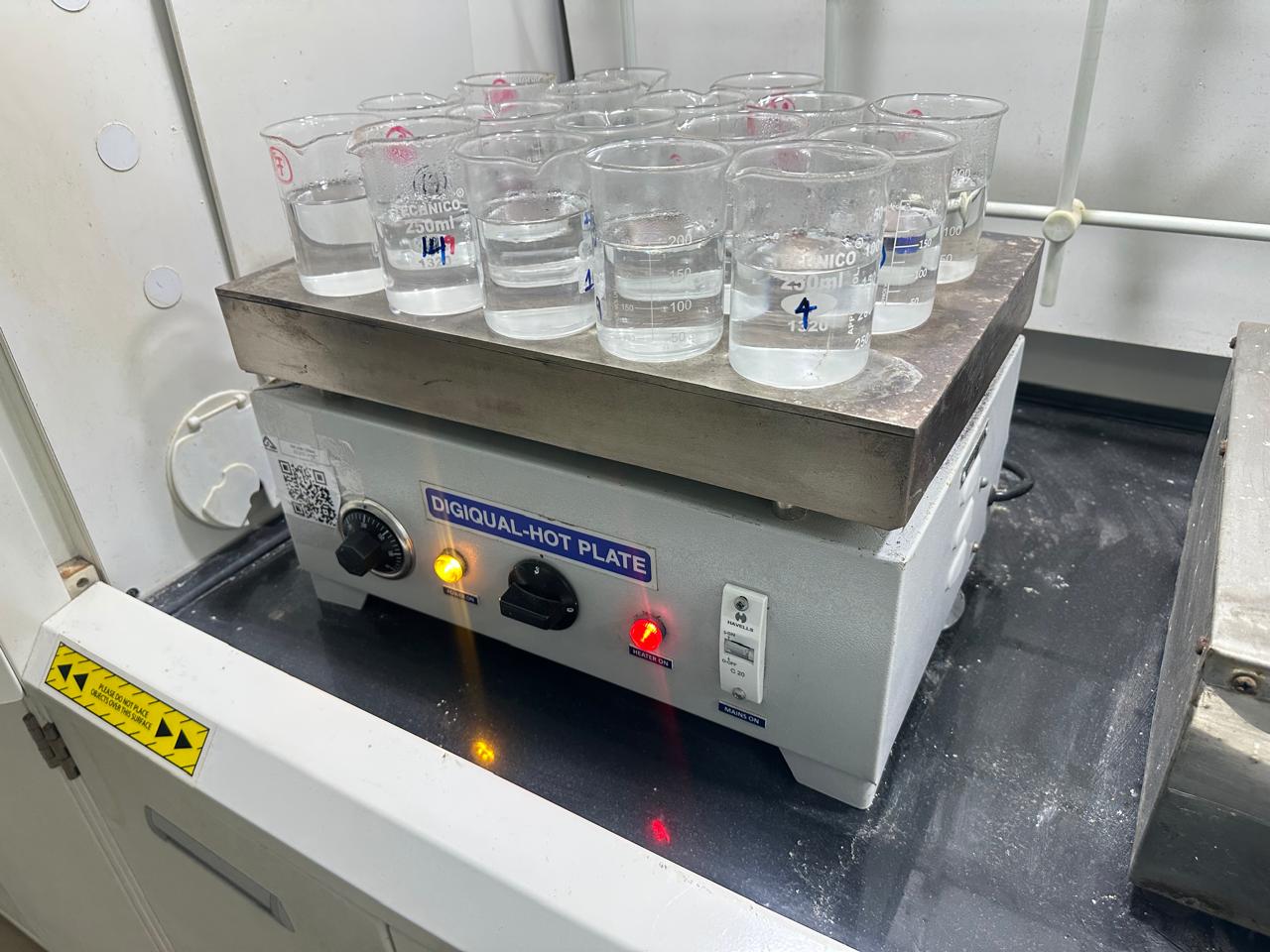

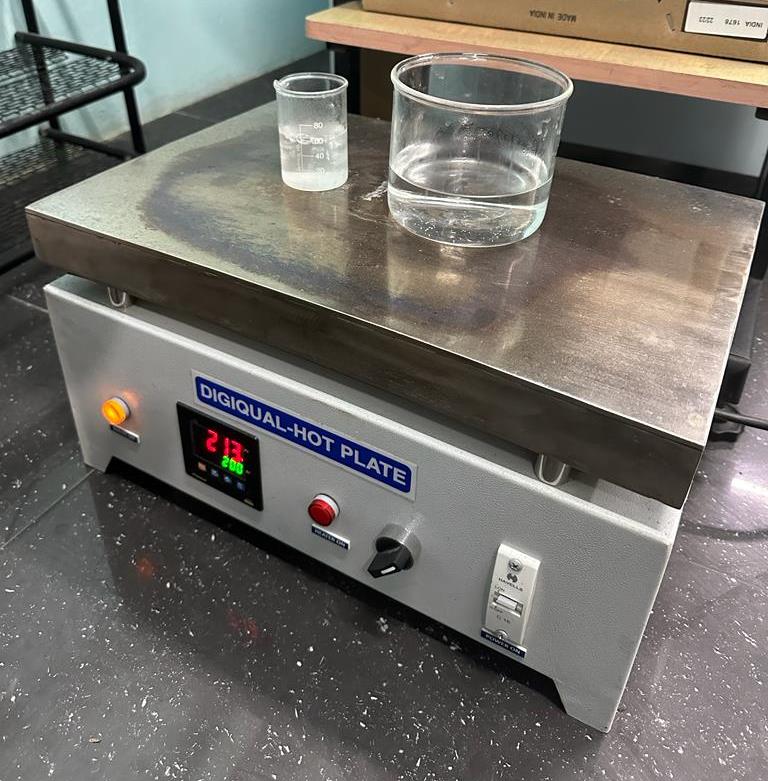

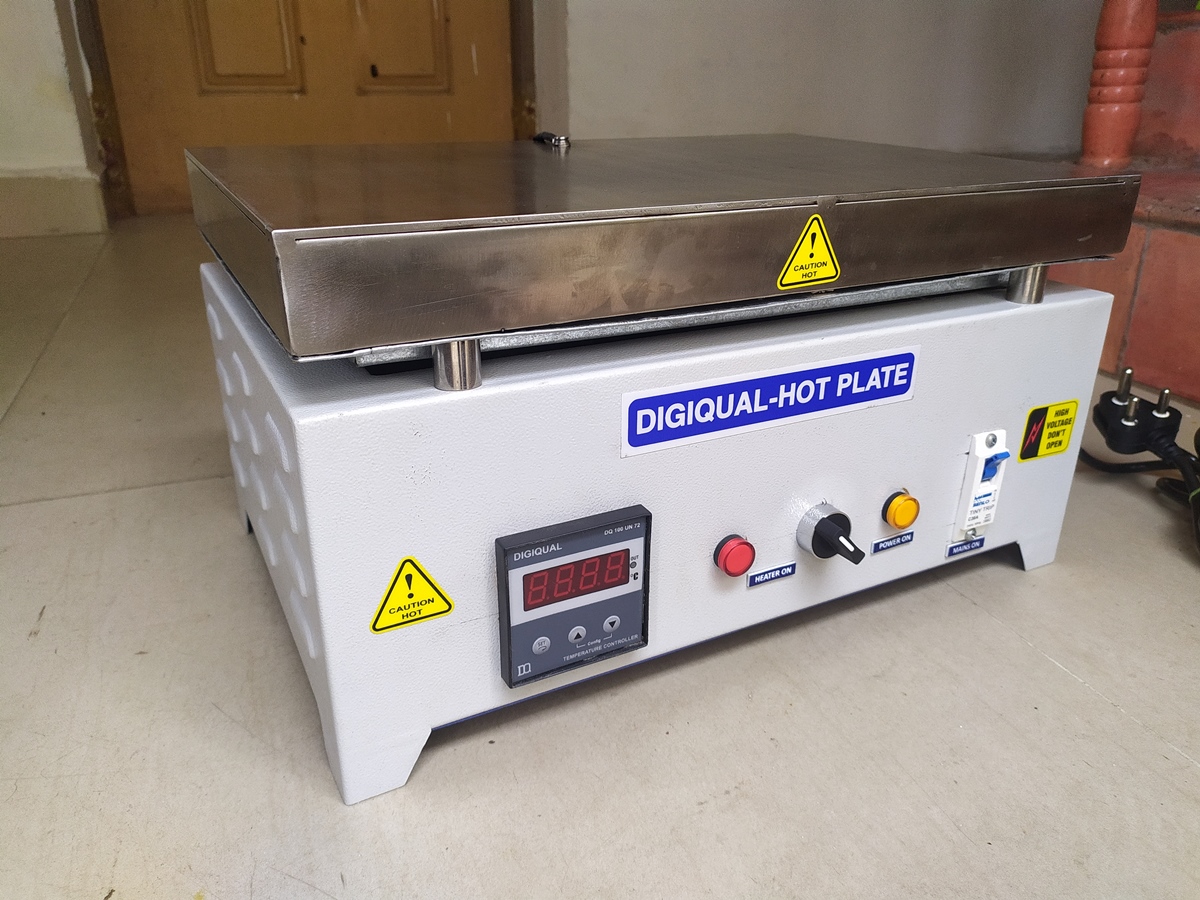

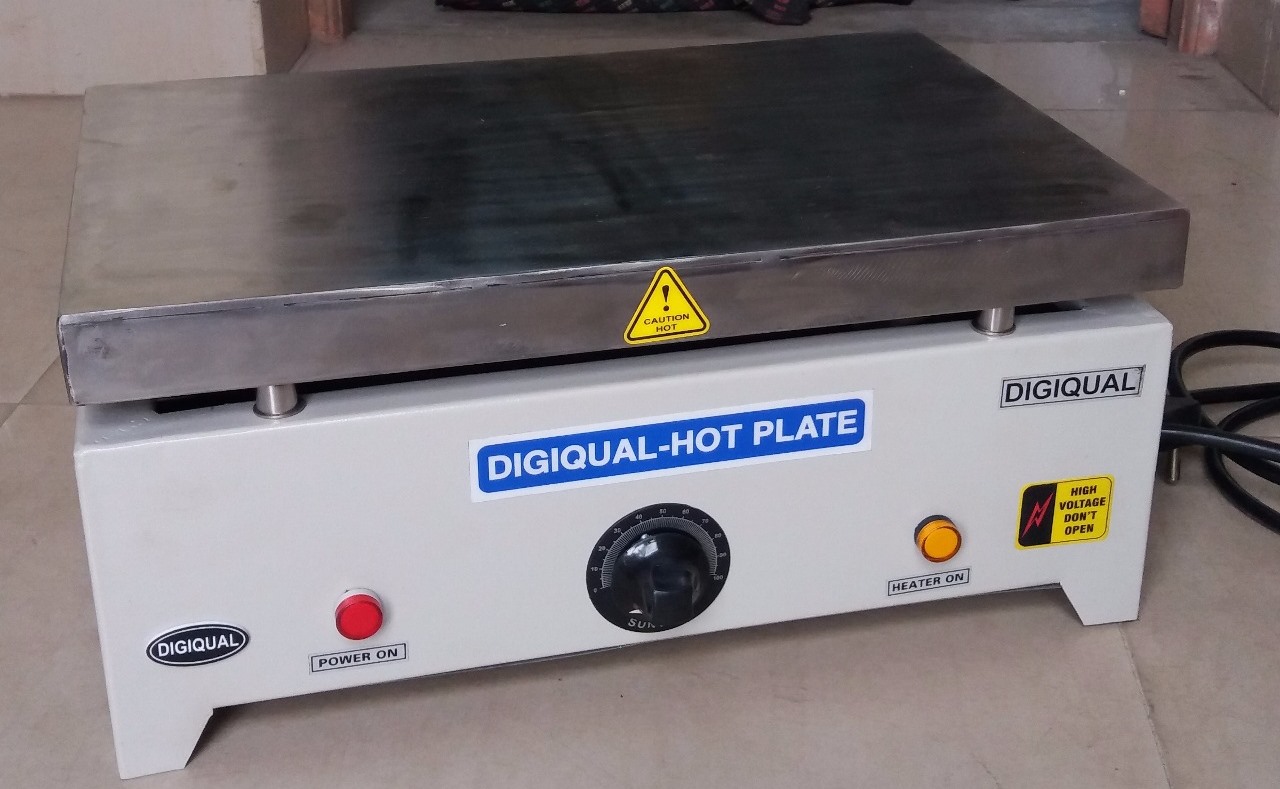

Laboratory SS Top Hot Plate

Digiqual is a Leading manufacturer & supplier of Laboratory SS Top Hot Plate, Plate Cylindrical SS Top Hot Plate.

The Digiqual Rectangular Laboratory SS Top Hotplates are made of SS 304 & MS powder coated. The Top Plate of our Hotplate is fabricated out of 5 mm Thick SS 304 plate at TIG welded on all sides-Heavy Duty Model. Outer Body made of MS Powder coated. Heating element we are using is Kanthal A1 Bleeded wire for Long Life, The maximum temperature of the Hotplate is 250°C.

The Control Panel consist of Digital PID Controller with Timer, Solid State Relay, Mineral Insulated High Temperature Thermocouple.

Accuracy : ±1°C

Working Volt : 220 V

Model No. Size Wattage
DQ-HP-01 10“ x 16 “ 2.0,KW
DQ-HP-02 12“ x 18 “ 2.5 KW
DQ-HP-03 12“ x 24 “ 3.0,KW
DQ-HP-04 18“ x 24 “ 4.5,KW

Optional :

    • Digital PID Temperature Controller
    • Digital Timer.
