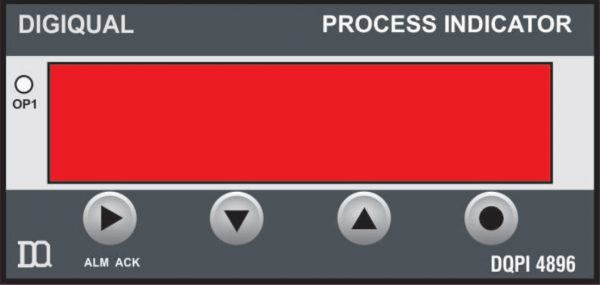

Universal High Accuracy Process Indicator

Universal High Accuracy Process Indicator

Technical Specification
Model No : DQPI – 4896
Display : 6 Digit 0.5 ” 7 segment RED LED
Password Access : Provided for user & supervisory settings
Temperature Inputs
(selectable)
: RTD – PT 100 & PT 1000
Thermocouples – J, K, R, S, T, B, N, E
Analog Inputs : mA , mV , Volt , Ohms (selectable)
Input & Display Ranges for Temp Inputs (scalable) : RTD – PT 100 – (-199.99 to 850.00°C / -327.8 to 1562.0°F)
RTD – PT 1000 – (-50.0 to 400.0°C / -58.0 to 752.0°F)
TC – J – (-200.0 to 1200.0°C / -328.0 to 2192.0°F)
TC – K – (-200.0 to 1372.0°C / -327.8 to 2501.6°F)
TC – R – (-40.0 to 1768.0°C / -40.0 to 3214.4°F)
TC – S – (-40.0 to 1768.0°C / -40.0 to 3214.4°F)
TC – T – ( -200.0 to 400.0°C / -328.0 to 752.0°F)
TC – B – (300.0 to 1820.0°C / 572.0 to 3308.0°F)
TC – N – ( -200.0 to 1300.0°C / -327.8 to 2372.0°F)
TC – E – ( -200.0 to 1000.0°C / -327.8 to 1832.0°F)
Input Ranges : 0 to 20 mA / 0 to + 75 mV / 0 to + 10 Volt / 0 to 4000 Ω
Display Range for Analog Inputs : -199999 to + 200000 (± 2 lakhs counts) (scalable)
Temp. Input Resolution : 1 , 0.1 , 0.01, 0.001 , 0.0001 , 0.00001 (selectable)
Units for Temp. Input : °C / °F (selectable)
Relay Output : 2 Relay (5 A Rated)
Sensor Supply Output : 24 V DC ± 10 % / 100mA Max. Load
Relay Status : High & Low Set point for each Relay (selectable)
Relay Cyclic Delay : 0 to 250 sec for each Relay (selectable
Relay Hysteresis : 0 to 10000 counts for each Relay (selectable)
Analog Output* (optional against order) : Galvanically Isolated 4 – 20 mA (or) 0 – 10 V O/P
PC Communication ** : RS 485 (2 wire)(optional against order)
PC software(optional) : Provided with logging, Alarm Setup, Record, Graph
Protocol(optional) : MODBUS RTU
Slave ID : 1 to 32 (selectable)
Baud Rate(bps) : 9600 , 19200 , 57600 , 115200 (selectable)
Mounting : Panel Mounting
Over all Dimension : 96 x 48 x 110 (W x H x D) mm
Cut out Dimension : 92 x 44(W x H) mm
Operating Environment : 0 to 50°C / 20 to 95 % RH non condensing
Power Supply : 90 to 270 V AC/DC 50Hz
Weight (Approx.) : 350 g

NOTE :
1. * & ** Analog Retransmission Output or RS 485 PC communication any one is possible in one DQPI-4896
2. Due to continuous improvements, Published specifications may change without notice
