Laboratory Bath

Laboratory Bath

6 hole water bath 12 hole water bath Constant Temperature water bath
Cryostat water bath Serological water bath Oil Bath
Vertical Auto Clave


6 hole water bath

1

Single walled completely made of stainless steel. The temperature is controlled by a thermostat from ambient 5 to 90 °C with a control accuracy of ± 5 °C. The bath is provided with two pilot lamps concentric rings on/off switch, wire and plug to work on 230 V AC.

Chamber size
300 x 250 x 100 mm(6 holes of Ø 75 mm)
300 x 405 x 100 mm(12 holes of Ø 75 mm)

12 hole water bath

12-hole-water-bath-500x500

Single walled completely made of stainless steel. The temperature is controlled by a thermostat from ambient 5 to 90 °C with a control accuracy of ± 5 °C. The bath is provided with two pilot lamps concentric rings on/off switch, wire and plug to work on 230 V AC.

Chamber size
300 x 250 x 100 mm(6 holes of Ø 75 mm)
300 x 405 x 100 mm(12 holes of Ø 75 mm)

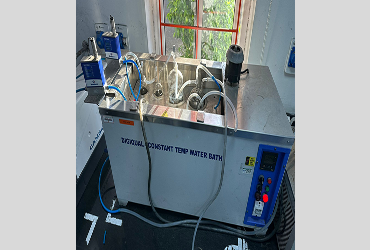

Constant Temperature water bath

DSC07006

Double walled chamber, inner made of thick stainless steel sheets and outer made of CRCA Sheets duly finished in powder coating. Glass Window provided in the front side for an easy inside view. Inter space in between the walls tightly packed with special grade glass wool. Top Lid is made of stainless steel plate and provided with handle. Heating elements are chromium plated immersion type.

Temperature controlled by precision thermostat. A Medium speed stirrer with 1/20 HP motor is fitted to the unit for continuous stirring and thus maintaining uniform temperature throughout. Built in control panel accommodate, indicating lamps, precision thermostat, On/Off switch, speed regulator to control speed of the stirrer. Designed to work on 220/230 volts a/c supply. Temperature Range: Ambient 5 to 100 °C, ± 2 °C

Bath Size (litres) Temperature
12 120 x 220 x 260 mm
28 200 x 260 x 300 mm
40 370 x 260 x 350 mm

Cryostat water bath

DSC00243

Double walled chamber, inner made of stainless steel and outer made of cold rolled mild steel sheets and attractively finished in powder coat paint. The inter space in between the walls is tightly packed with special grade glass wool to avoid thermal losses.

The Chamber is provided with top opening lid made of stainless steel and provided with handle. Evaporating coils are kept inside the inner chamber for faster cooling. The refrigeration system consisting of compressor, air-cooled condenser and accessories is provided at the lower portion of the bath.

The temperature is controlled by digital ON/OFF temperature controller with an accuracy of ± 2 °C. The unit is fitted with a stirrer to recirculate the liquid in the tank to maintain uniform temperature inside the bath.

Built in control panel with indicator lights, On/Off switches, Digital ON/OFF controller, speed regulator for stirrer is provided at the side of the bath. Temperature Range: 5 °C to 90 °C. ± 2 °C.

Capacity (litres) Power Rating
12 120 x 220 x 260 mm
28 200 x 260 x 300 mm
40 370 x 260 x 350 mm

Option:

PID controller for better than 1ºC accuracy.

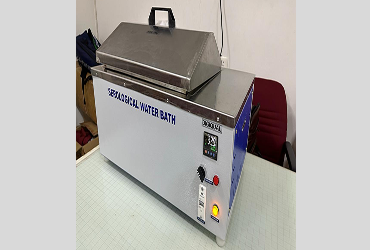

Serological water bath

12-hole-water-bath-500x500

Double Walled Chamber, inner made of Stainless Steel and outer made of cold rolled mild steel sheet and finished in powder coating. The inter space in between the wall is tightly packed with special grade glass wool to eliminate radiation heat loss to the minimum.

The top cover with plastic knob is provided for the unit. A drain plug is fitted to drain out the used water. The inner chamber fitted with immersion type heating element and covered with perforated removable diffuser tray. A capillary type thermostat controls temperature with an accuracy of ± 2 °C. The front panel accommodates all controlling components.

Inner Size >Racks Capacity
250 x 150 x 175 mm 1 7 ltrs.
300 x 250 x 175 mm 2 14 ltrs.
330 x 300 x 175 mm 4 18 ltrs.
455 x 300 x 175 mm 6 25 ltrs.

Option

Digital Temperature Controller with sensor

Oil Bath

DSC02546

Walled chamber, inner made of polished stainless steel and outer is made of mild steel sheet with powder coat finish. Inter space between the walls is insulated with special grade glass wool. Air heaters are provided for heating and a thermostat controls the temperature. Control Panel accommodating pilot lamp, thermostat will be attached to the side of the bath. Supplied complete with plug and cord.

Temperature Range: Ambient 5 °C. to 250 °C.

Capacity Rating
500 ml 400 watts
1000 ml 750 watts
2000 ml 1000 watts
3000 ml 1500 watts
5000 ml 1500 watts
10 ltrs 2000 watts
20 ltrs 2500 watts

Option:

Automatic digital temperature controller with Fek sensor

Vertical Auto Clave

Vertical Auto Clave

Double walled chamber, Interior, Perforated Basket and the Doomed Lid made of polished Stainless steel, argon arc welded and Exterior made of Stainless steel sheets / Cold rolled mild steel sheet finished in powder coating. The Lid is tightened with wing nut.
Heating elements are Immersion type Heaters. The Unit is fitted with Neoprene Rubber Gasket to ensure tight sealing. All Autoclaves are hydraulically tested up to 40 PSI as safety measure. The Unit is incorporated with Pedal Lifting Device for easy opening of the Lid.
Standard accessories supplied with unit are Water level indicator, pressure gauge, steam release cock, spring-loaded safety valve, cord and plug

Pressure Range 20 psi.
Inner Temp. 120 ° C.
Operating volt 230 Volts
Diameter x Height Power Rating
300 x 300 mm* 1.5 kw
250 x 450 mm* 1.5 kw
300 x 500 mm* 2.0 kw
350 x 600 mm 3.0 kw
450 x 600 mm 4.0 kw
450 x 750 mm 4.0 kw
550 x 750 mm 5.0 kw
750 x 1000 mm 6.0
kw
