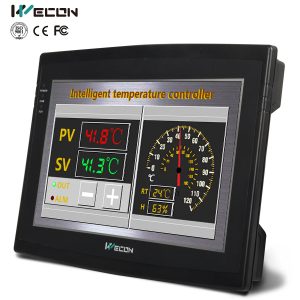

Touch Screen Temperature Controller

Touch Screen Temperature Controller

Digiqual Manufacturers of Digital Process Indicator & Universal Input Programmable Indicator Model : DQ 500

Digiqual Supply Latest Model Touch Screen PID Temperature Controller. You may see the Set Value / Process Value, Heater Current Output , Amps , Volt in Single Screen. Settings can be set from Touch Screen. Applicable Area

  • Ovens
  • Furnaces
  • Test Chambers
  • Driers
  • Plastic Injection Moulding Machine
  • Textile Machineries

Technical Specifications :

Screen diagonal 9 inches
Enclosure front (W*H*D) 203 W*150 H*40 D mm
Mounting cutout 192 W*139 H mm
Color TFT true color
Resolution (W*H) 800*480 pixels
Backlight Long- lifespan LED
Operation method Touch Screen
Interface type RS232, RS485, Ethernet interface( 10 / 100M adaptive Ethernet interface)
Baud rate 1200-19200 bps
