Grooved Muffle Furnace – 1100°C

Grooved Muffle Furnace – 1100°C

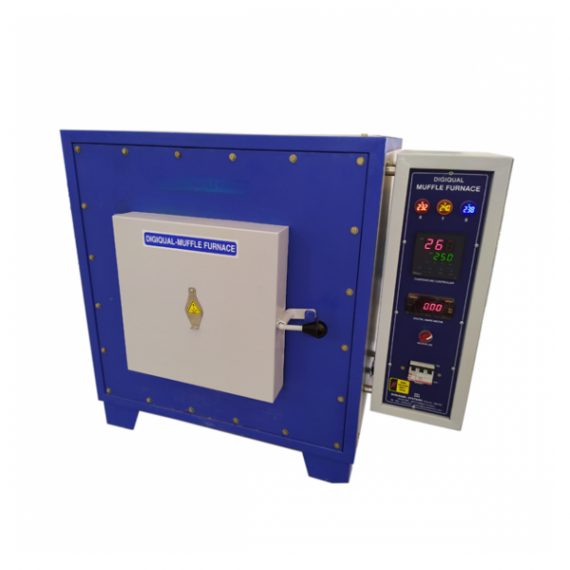

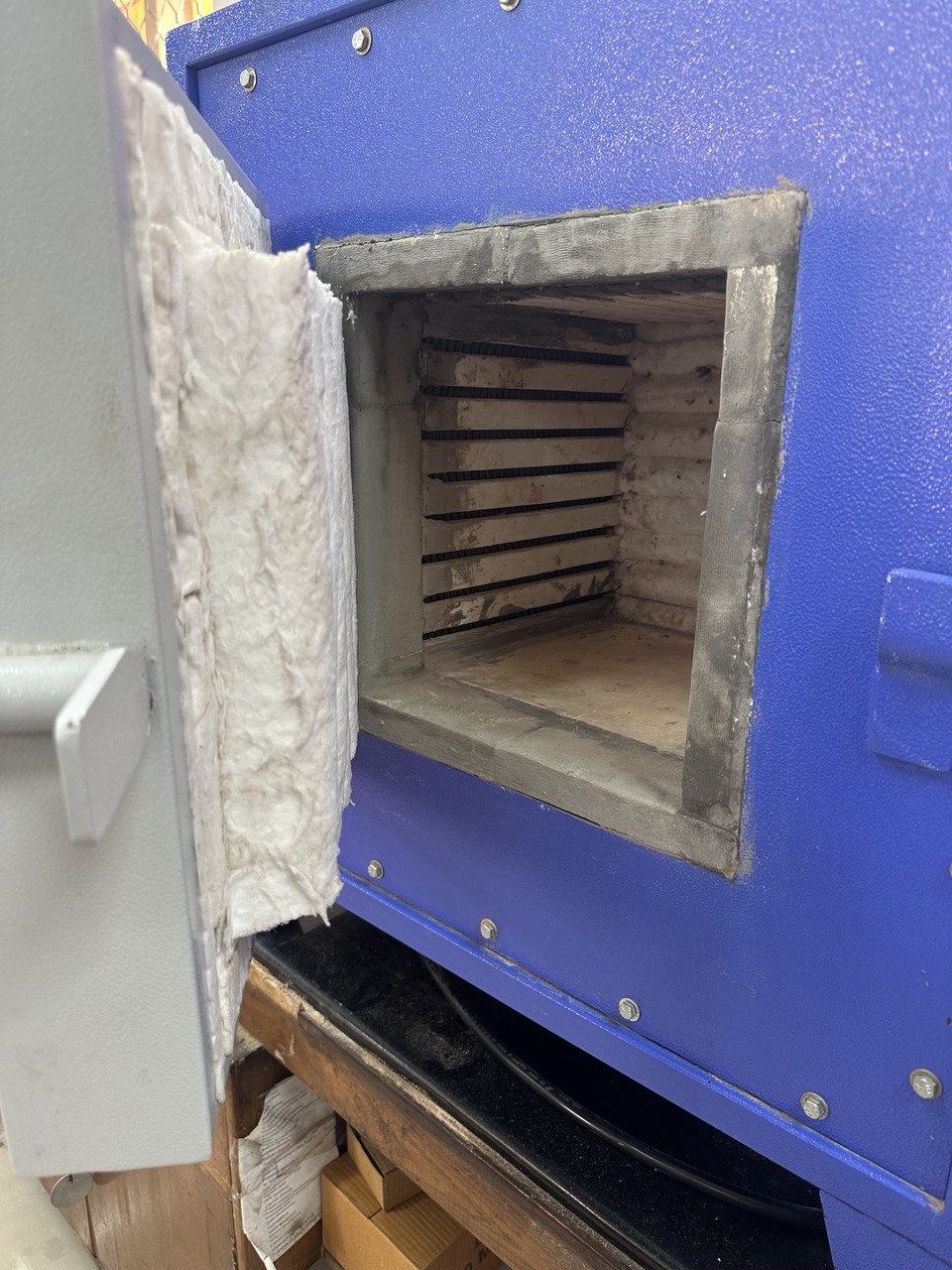

Digiqual High Temperature Grooved Muffle furnace is Double walled chamber inner made of 4 nos. siliminite refractory slabs and outer made of cold rolled mild steel sheets finished in powder coating. Insulation by Ceramic fibre blankets to minimize radiation heat loss. Double walled insulated door mounted on heavy-duty hinges is provided with effective locking arrangements.

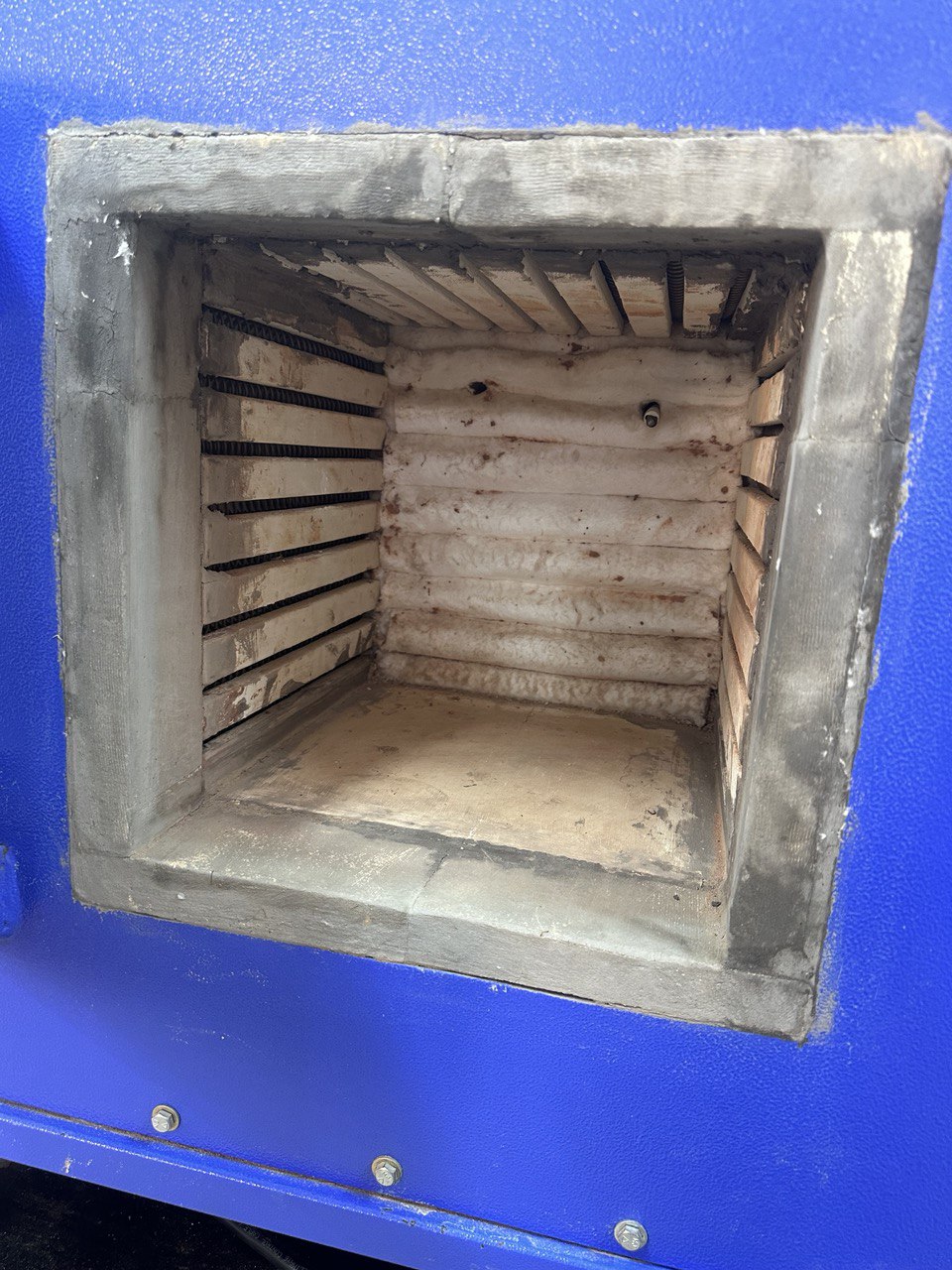

For High Temperature Muffle furnace Heating elements will be Kanthal A1 coils suspended in the grooves of the refractory. Temperature is maintained and controlled by Digital temperature controller working in conjunction with Cr/Al thermocouple placed in the hot zone. Supplied complete with control panel. We Supply High Temperature Muffle Furnace in Complete Satisfaction to User.

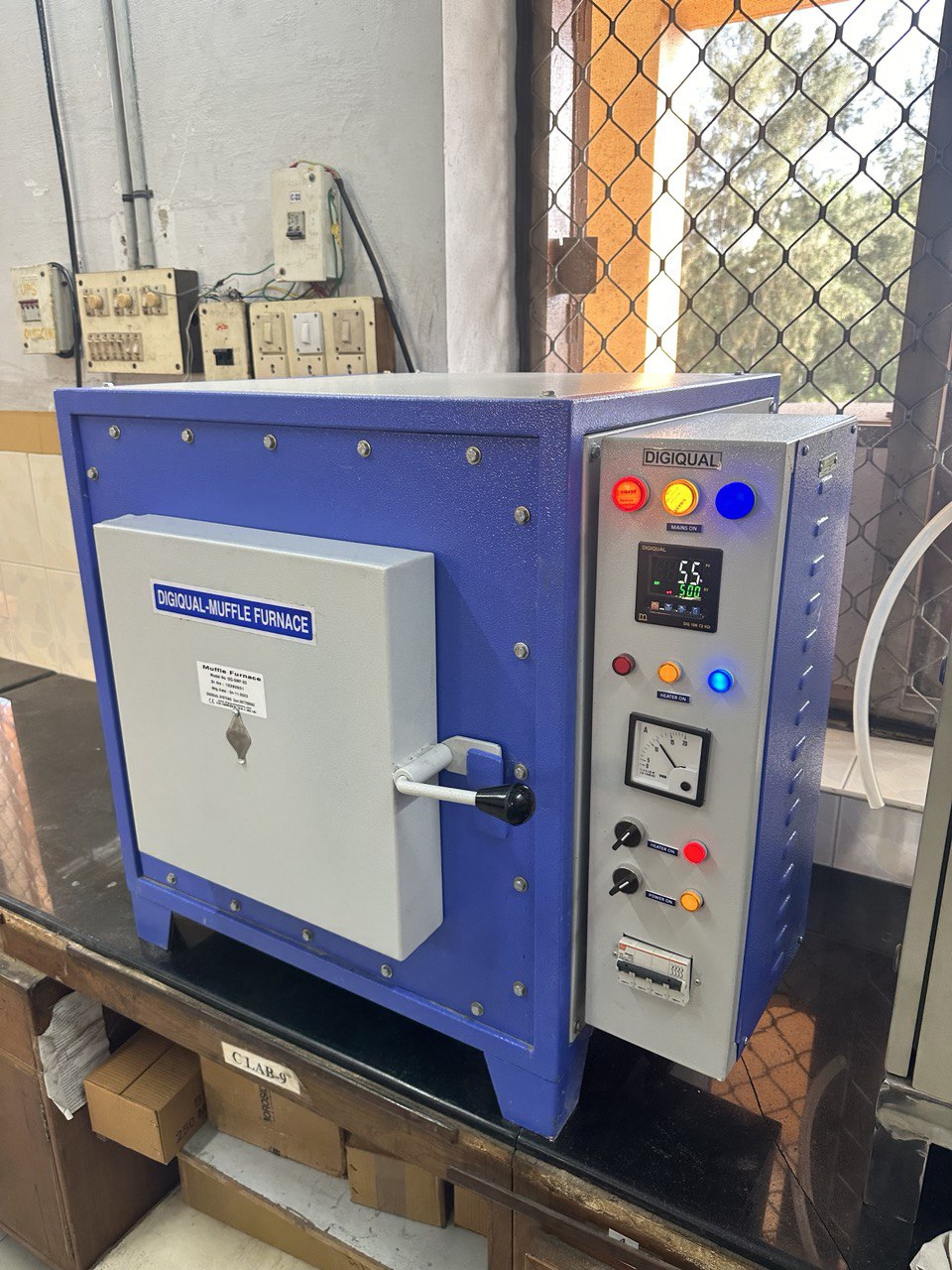

Control panel : Consists of Digital PID Temperature controller, SSR, Indicating lamps, On/off Switches. The furnace is finished in attractive powder coat finish.

Enquire Now Download PDF

Technical Specification
Operating Temperature Ambient 5* C to 1100 °C.
Max. Temperature 1150 °C.
Temp Accuracy 1 % of Set Temperature
Power supply 230 volts AC, Single phase.
Model No. Inner Chamber size in Inches Power Rating kw
DQ-GMF-01 5” x 5” x 10” 2.5 Kw
DQ-GMF-02 6” x 6” x 12” 3.0 Kw
DQ-GMF-03 8” x 8” x 12” 4.0 Kw
DQ-GMF-04 12” x 12” x 12” 5.0 Kw
