Touch Screen Data Logger

Touch Screen Paperless Recorder

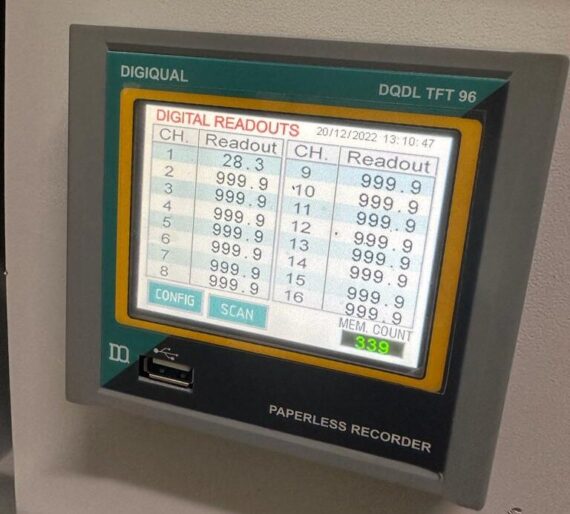

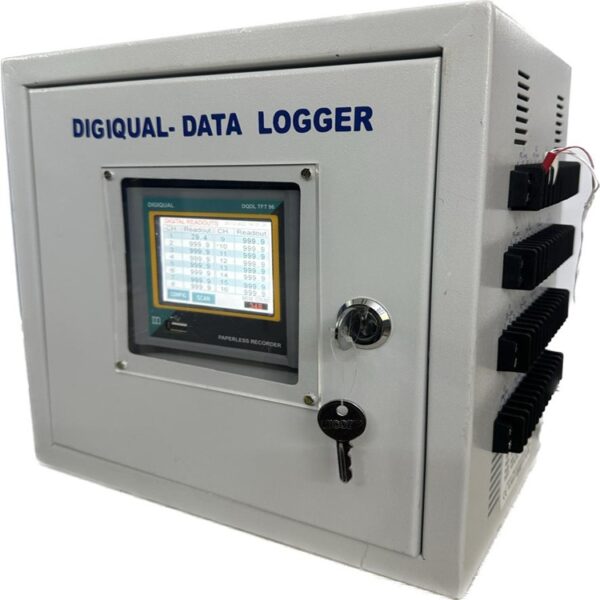

Digiqual Systems Manufacturers Touch Screen Data Logger , Model : DQDL TFT 96 / DL-35W, Universal Input Data Logger, USB / Pen Drive Data Logger, Touch Screen Data Logger. Data Loggers Available in 8 channel & 16 Channel Models.

Enquire Now Download PDF

Category:
Share:
Specification Of Touch Screen Process Data Logger
Model DQDL TFT 96
Input Fixed/Universal,(T/Cs [K,J,R,S,N]/RTDs[Pt100] / Current [0/4-20mA]/Voltage [0/1-5VDC])
Operating Voltage 230 VAC ±10 / 50 Hz
No Of Input 8/16 Nos
No Of Alarm 1/2 Nos
Printer port Parallel printer port
Display 3.5 inch multi colour TFT display
Enclosure Aluminium case
Power consumption ≤ 6W
Work ambience Temperature (-10 to 60°C) , Humidity ≤ 90%RH
Temperature drift ≤ 0.01%FS/°C ( typical 50ppm )
Electromagnetic compatibility IEC61000-4-4, ±4KV/5KHz; IEC61000-4-5, 4KV
Isolation withstanding voltage Between power, relay contact and signal terminals ≥ 230VDC Between isolated electroweak signal terminals ≥ 600VDC
Response time ≤1.5 seconds if digital filter parameter is set as 0 or 1
Automatic pilot time interval Approx 1.2s or 2s configurable
