Hydrothermal Autoclave Reactor

Hydrothermal Autoclave Reactor

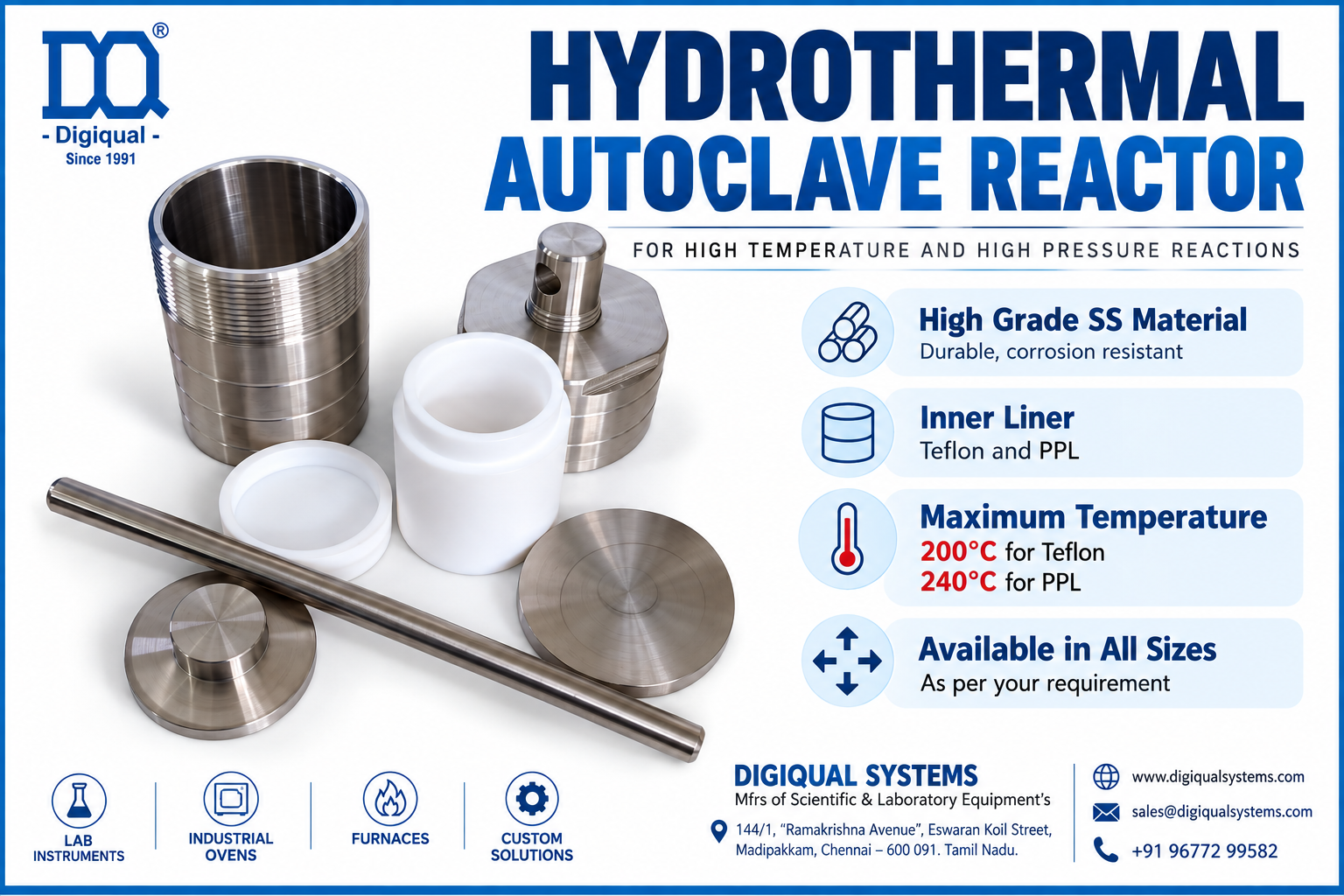

Small-Sized Hydrothermal Autoclave Reactor is used for Testing Samples at High Pressure & Certain Temperature.  The Hydrothermal Autoclave Reactor is fabricated out of Hardened SS 316 Solid Rod.  The Rod is Machined to Form a Container making the product very Heavy & Rigid to withstand in High Pressure & Temperature. The autoclave for hydrothermal synthesis mostly used for crystallization processes .Since it is operating at a very high temperature and high pressure.  The hydrothermal synthesis autoclave reactor is great corrosion resistance and strong air tightness.

The top Opening is Made of Threaded type with 8 Turns of Threads, making the Autoclave very heavy, so the top may not eject under High Pressure.  The top Cap can be Manually Tightened First, & Heavily Tightened with the SS Rod Provided which is made out of 10 mm.  Outer Grooves are done which makes the Hydrothermal Autoclave Reactor Looks Aesthetically Good.

Hydrothermal Autoclave Reactors are manufactured from 10 ml to 2000 ml. working Pressure will be3mpa.

Hydrothermal synthesis reactor generally comes in a two variety

  1. PTFE  ( Polytetrafluoroethylene )

Formula : (C2F4)n, Density2.2 g/cm³, Thermal conductivity0.25 W/(m·K)

PTFE Casing Is advised to operate in Temperature 200 * C,

PTFE Looks Pure White in Colour.

  1. PPL ( Polypropiolactone )

PPL Casing is advised to Operate at Temperature 240 * C to 260 * C

PPL Material looks Black in color, when heated to the temperature the materials turns very rigid, making the mechanical strength very high.

While Ordering Customer to Select the Liner Material. Precautions.

  • Use the Product at the Particular Temperature advised.
  • We Recommend to use the Product in Hot Air Oven with Accuracy +/- 2 * C
  • Autoclave should be Tightened Heavily with Rod. Hand Tight is Insufficient.
Sl.No Capacity  Model
1 10 ml DQ-HAC-01
2 25 ml DQ-HAC-02
3 50 ml  DQ-HAC-03
4 100 ml DQ-HAC-04
5 150 ml DQ-HAC-05
6 200 ml DQ-HAC-06
7 250 ml  DQ-HAC-07
8 300 ml  DQ-HAC-08
9 400 ml DQ-HAC-09
10 500 ml  DQ-HAC-10
11 1000 ml DQ-HAC-11
12 1500 ml  DQ-HAC-12
13 2000 ml DQ-HAC-13
