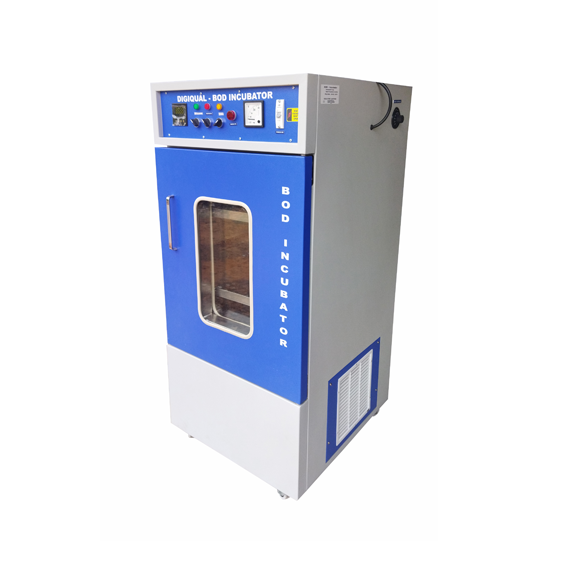

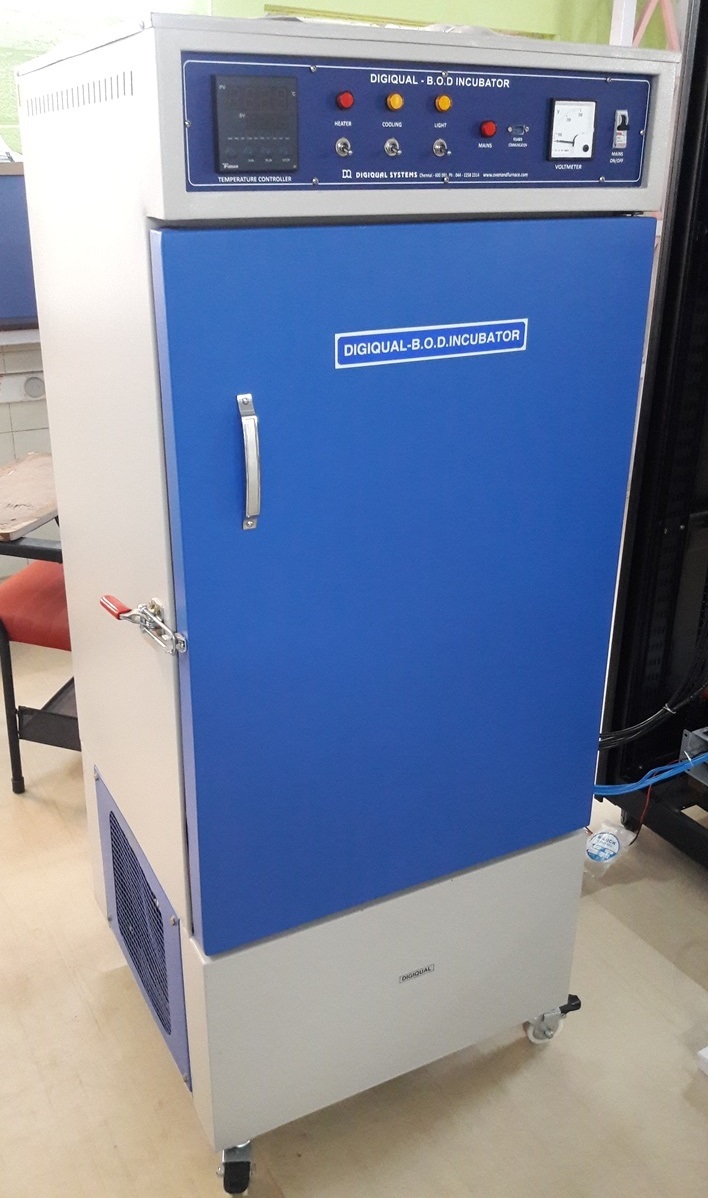

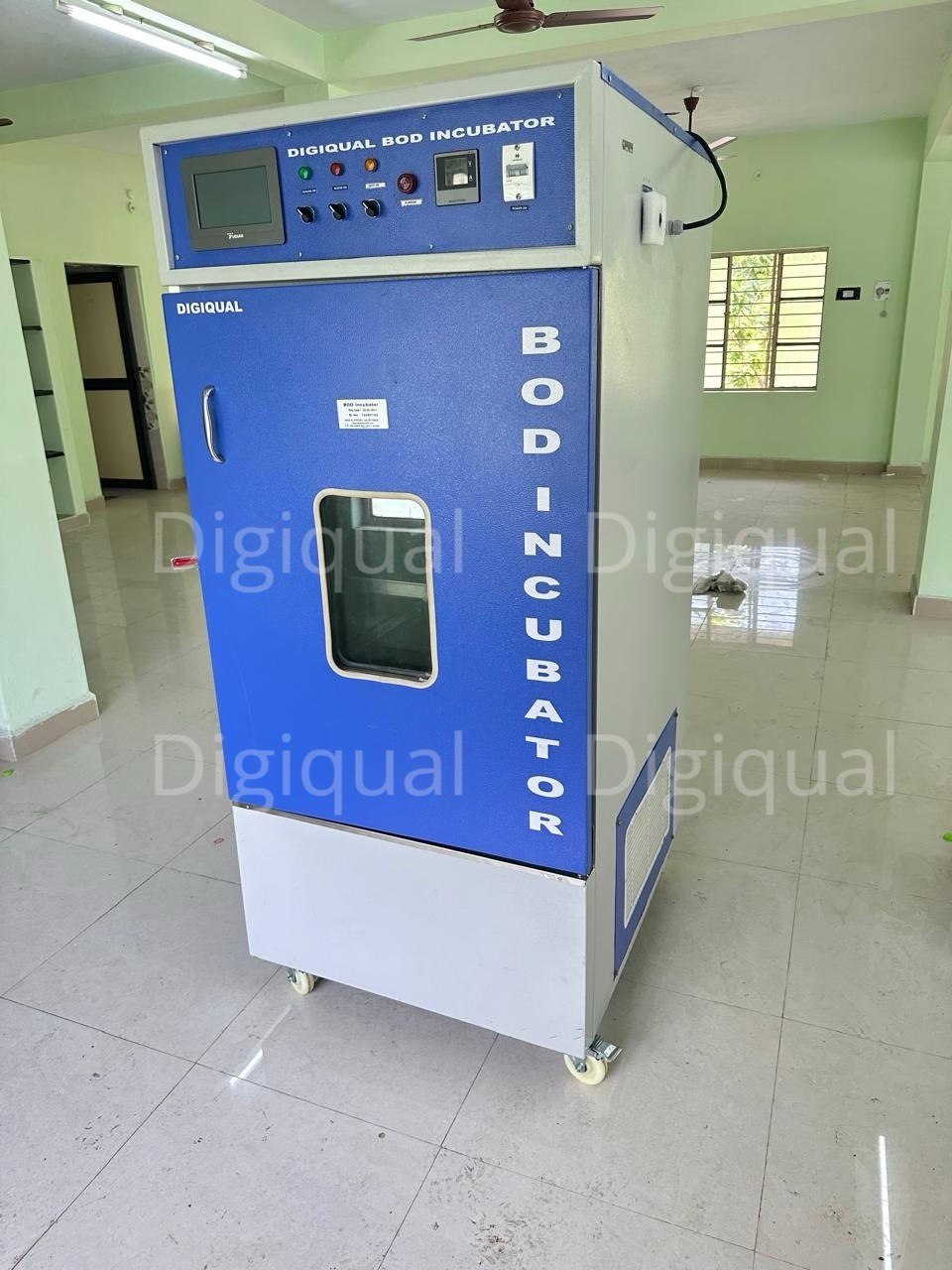

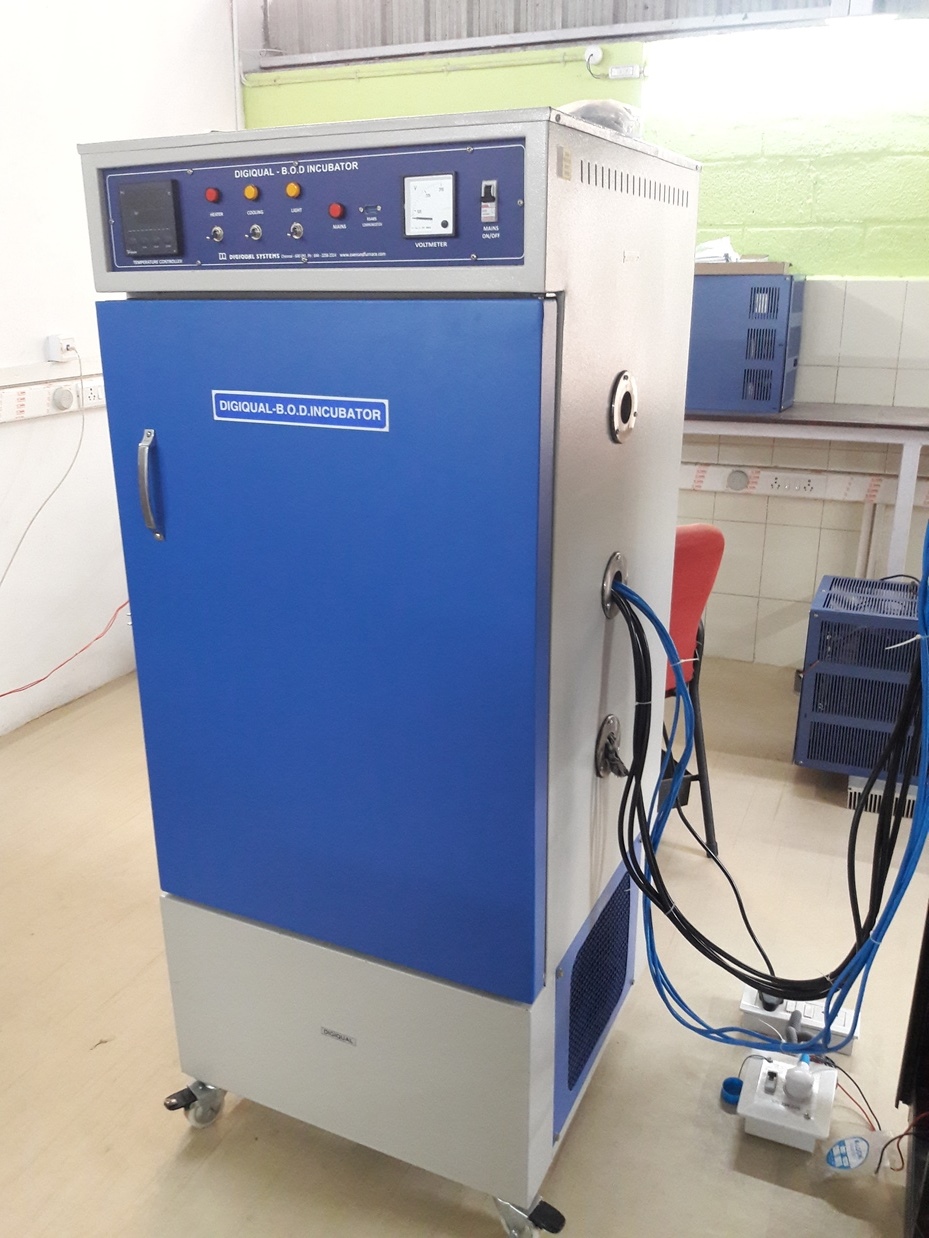

BOD Incubator

BOD Incubator

Digiqual Systems’s BOD Incubators / Cooling Incubators are ideal for the storage of bacterial cultures and maintain temperature for test tissue culture growth. Double walled chamber with interior made of stainless steel and exterior made of Cold Rolled Mild Steel Sheets finished in powder coating. Insulation is done by 70 mm minimum for Body & 80 mm for Door, CFC free polyurethane foam. Removable steel Trays are provided.

Double door system, with Front Transparent Toughened Glass and outer double walled M.S door provided with lock and key arrangement. Leak Tight Door Arrange for cooling loss.

Temp. is controlled by a Digital PID Temperature Controller with RTD Sensor. A Circulating fan assembly is incorporated in the unit for uniform temperature inside the chamber.

Enquire Now

CFC free Refrigeration System by Hermatically Sealed Kirloskar-Copeland compressor with Relay Start, Heavy Duty Air cooled condenser for Continues Operation and accessories provided at the bottom of the chamber. 2 Nos Fluorescent Illumination is Provided. UV Lights are Provided for Sterilization purpose. SS Tubular Heaters are Used for Heating. Visual/Audio Visual Alarms for Power failure and Open Door and Temperature variation alarms . 0-24 hours cyclic timer for regulating illumination. The unit is mounted on 4 nos. castor wheels. Temp Range : 5 °C to 60 °C, ± 0.5 °C. Voltage: 230 V Single-Phase 50 cys. Stabilizer will be supplied along with BOD Incubator.
Inner Chamber size Capacity Cu. Ft No. of trays Power Rating
455 x 610 x 410 mm 4 2 1.0 Kw
500 x 800 x 415 mm 6 2 1.5 KW
570 x 870 x 550 mm 10 2 1.5 KW
650 x 900 x 550 mm 12 3 2.0 KW
700 x 900 x 650 mm 15 3 2.5 KW
