Vertical Tubular Furnace

Vertical Tubular Furnace

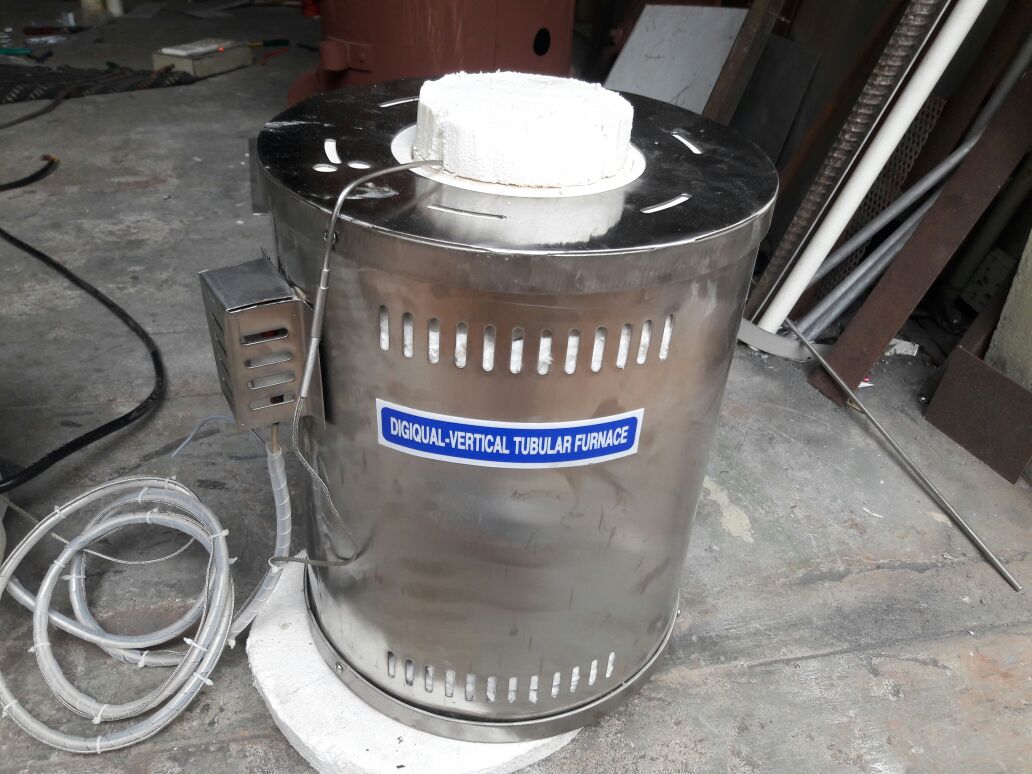

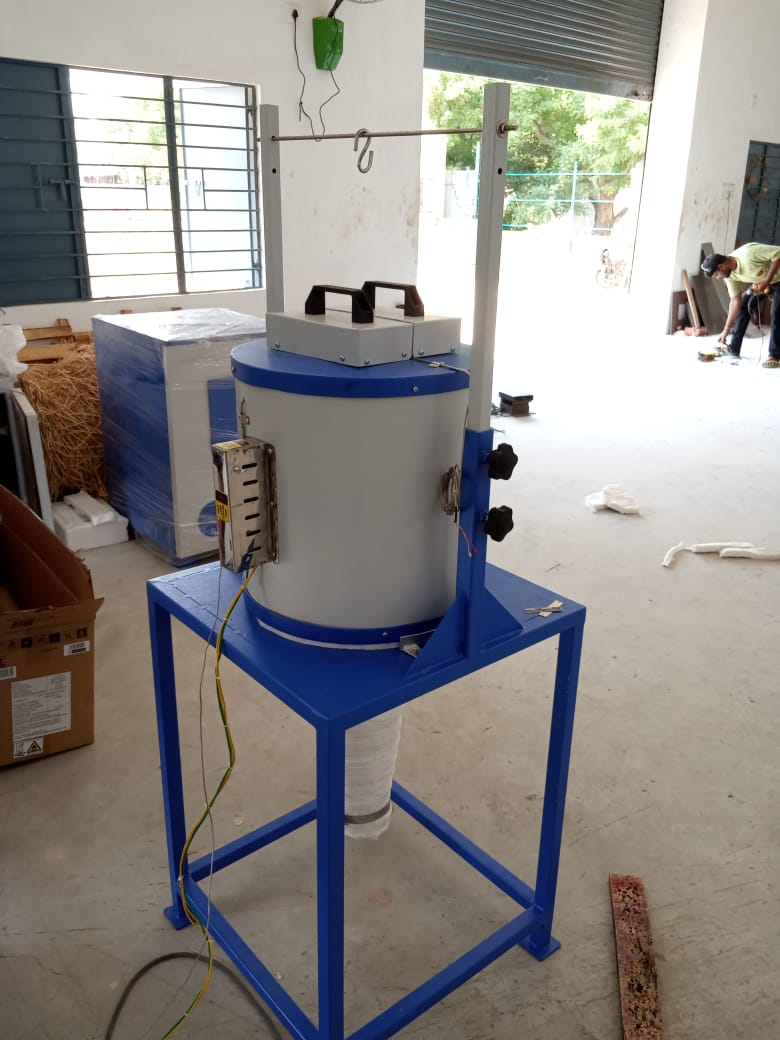

Digiqual Manufacturers Vertical Tubular Furnace in Different Dimensions & Temp Range up to 1400 * C. Outer Casing Fabrication Made out of SS 304 , 2mm Sheaths & of Double chamber . In Vertical Tubular Furnace Outer Chamber is Fabricated for Air Gap & to reduce Skin Temperature. Furnace Tube is of High Quality Alumina Ceramic Tube. In Vertical Tubular Furnace Heating Elements are Kanthal A1 & Silicon Carbide.

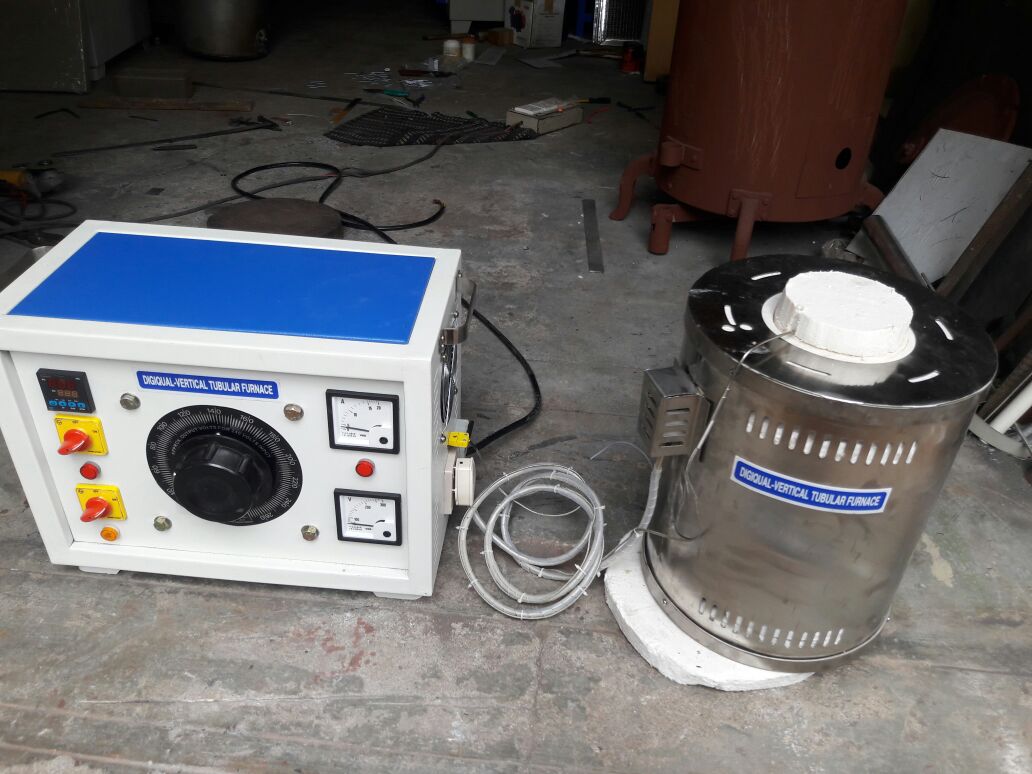

Control Panel will be Digital PID Temperature Program Controller with 16 Segments Integrated with Thyristor Control Drive for High Accuracy & Ramping Function. Control Accuracy : + / – 0.1 * C

Enquire Now

Share:
Technical Specification
Operating Temperature range : 600-1000 °C
Max. Temperature : 1100* C
Temp Accuracy : +/- 0.1* C.
Operating Voltage : 230 volts, Single Phase
Optional :
  • Controller with Thyristor Output for Better Accuracy.
  • End Fittings for Inert Atmosphere Purging
  • Quartz Tube with End Fittings.
Tube Inner Dimensions Temp Range Temp Range
50mm Dia x 300 mm Length 1100 * C 1400 * C
75mm Dia x 300 mm Length 1100 * C 1400 * C
110mm Dia x 300 mm Length 1100 * C 1400 * C
150mm Dia x 300 mm Length 1100 * C 1400 * C
