Orbital Shaker Incubator

Orbital Shaker / Rotary Shakers

Rotary Shakers are Majorly Used in MircoBiological Applications for Mixing Samples. DIGIQUAL Rotary Shakers are Designed Table Top with MS Sheet Fabrication Outer Body Neatly Powder Coated with a very thick Sheet.

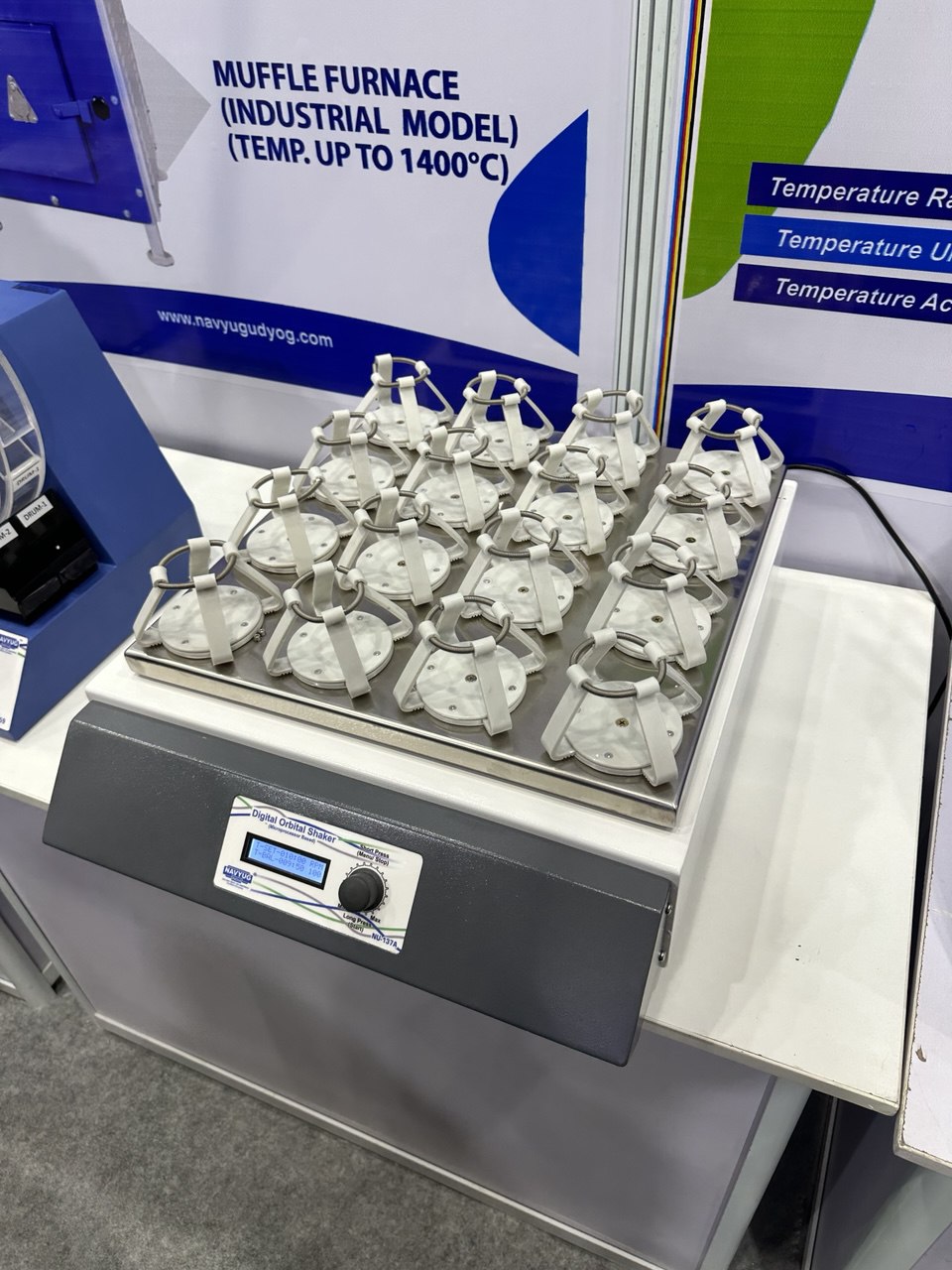

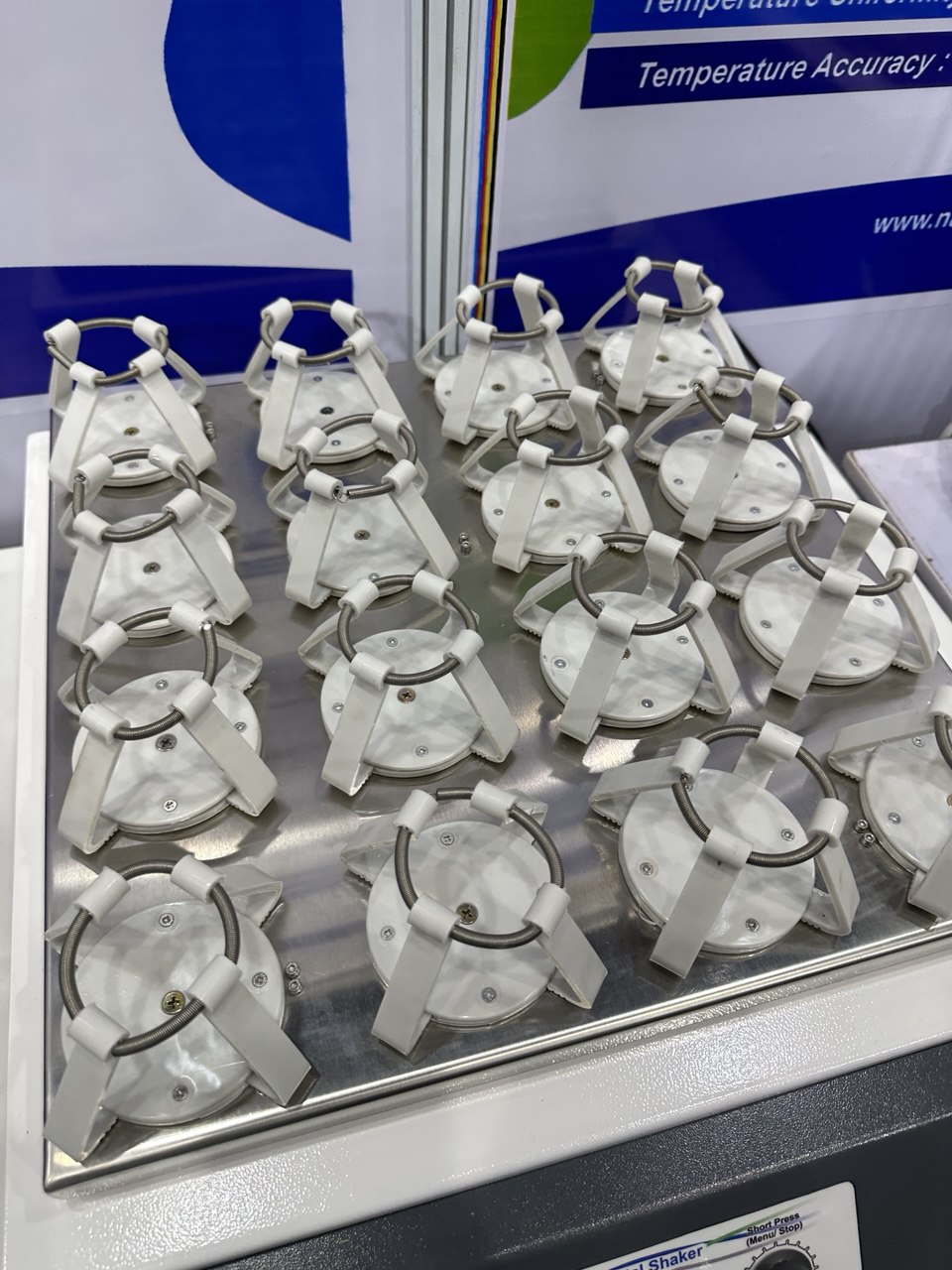

The top of the Shaker Platform is Fabrication out of a 2.5 m Thick SS sheet over which the Flask Holders will be Screwed. Flask Holders are made of Polypropylene Material with Springs for Flexibility. PP material is used to avoid Corrosion. Flasks can be Interchanged according to User Requirements by Unscrewing the SS Screws provided.

Shaker is Fixed to a BDC Motor which is Imported Make Gives at least 3 Years of Maintenance Free. This Motor Technology accepts inputs from our Control PCB for even 1 RPM.  Motor Rpm can be Selectable from 1 RPM to 300 RPM.   DIGIQUAL Rotary Shaker is Designed, so there is no shake or vibration at Higher RPM.

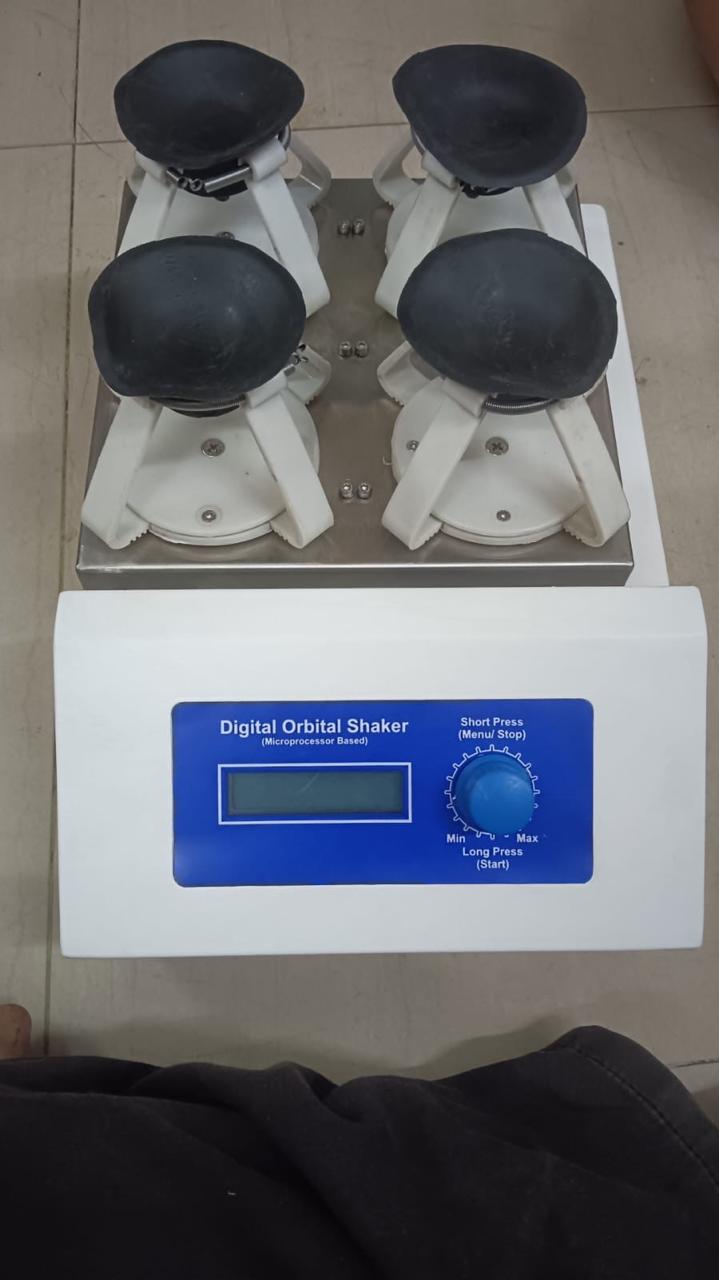

LCD Display Control PCB is Fixed in our Shaker. Control Board is Manufactured in-house in  DIGIQUAL Instrument Dept. Using Quality IC’s & Latest Technology Coding, the Machine behaves well as per our Input. No Failure in Control PCB also for Min 3 Years.  Rotary Shaker will be working on 220 V AC & 4 Amps Power Load.

User to Select Capacity of the Holder.

Options available

  • 50 / 100 Ml
  • 250 / 500 Ml
  • 1000 ml
  • 2000 ml
Platform Size Model Number
300 x 300 mm  DQ-OS-01
450 x 450 mm DQ-OS-02
560 x 560 mm DQ-OS-03
660 x 660 mm DQ-OS-04
