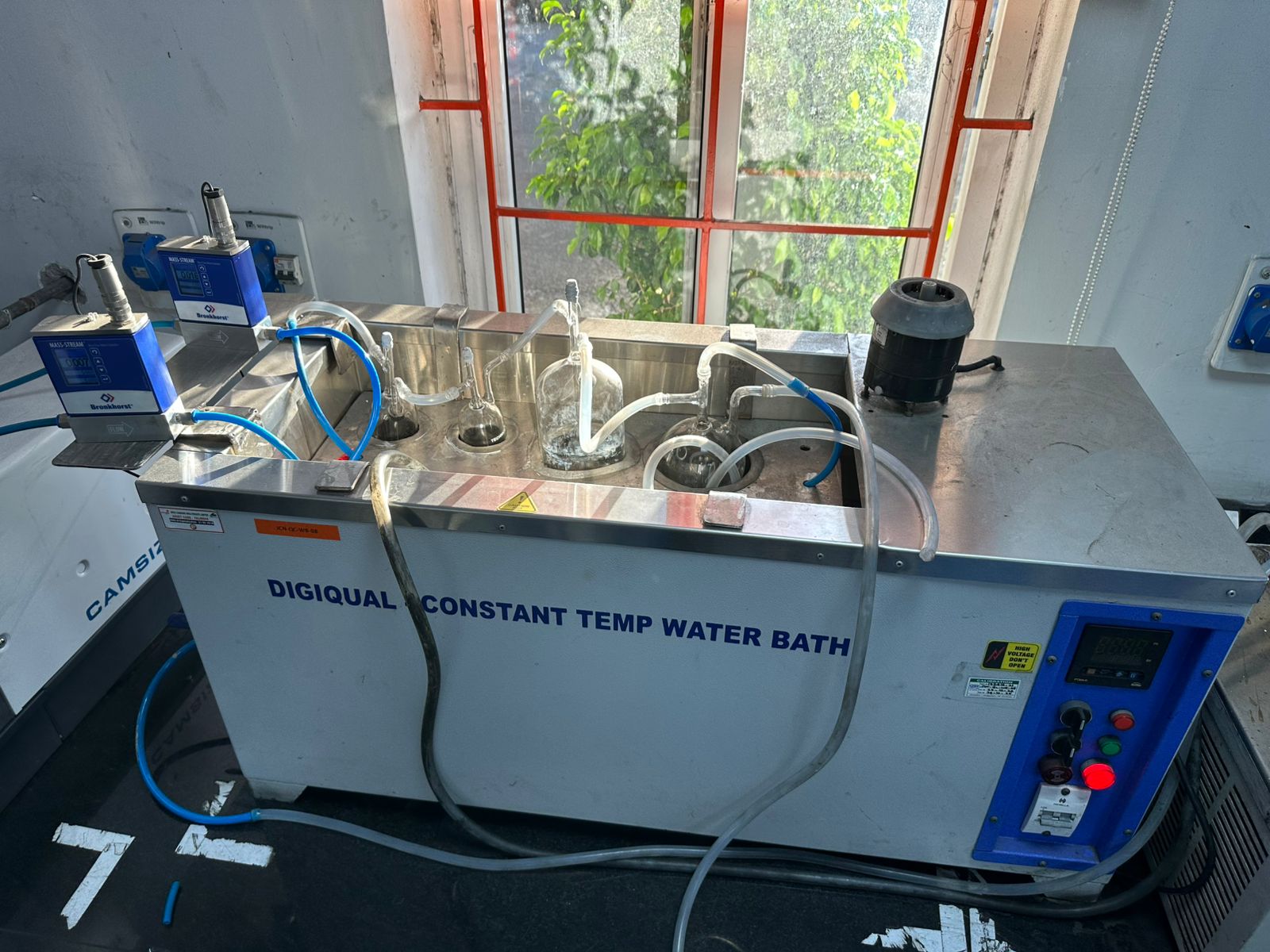

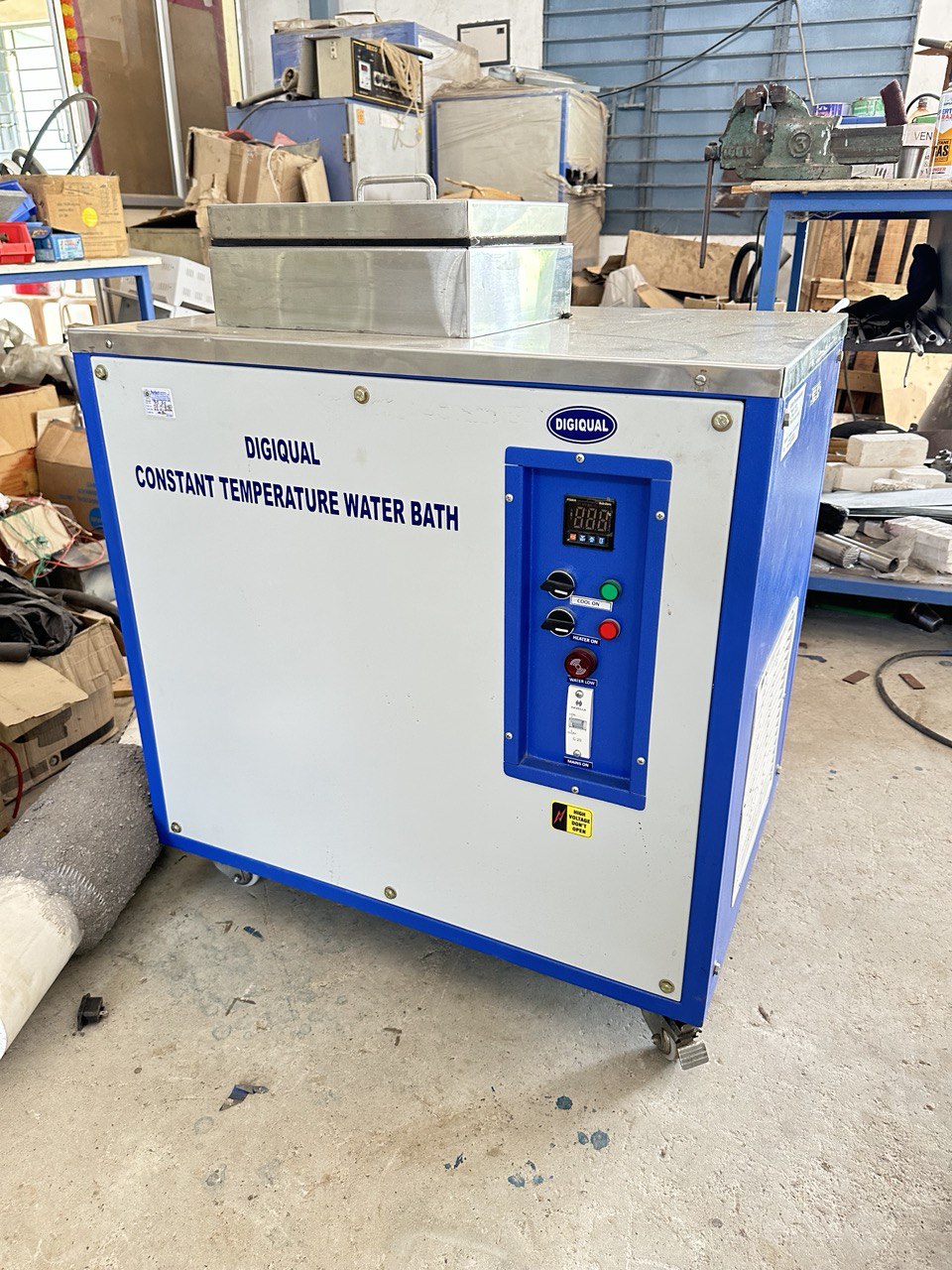

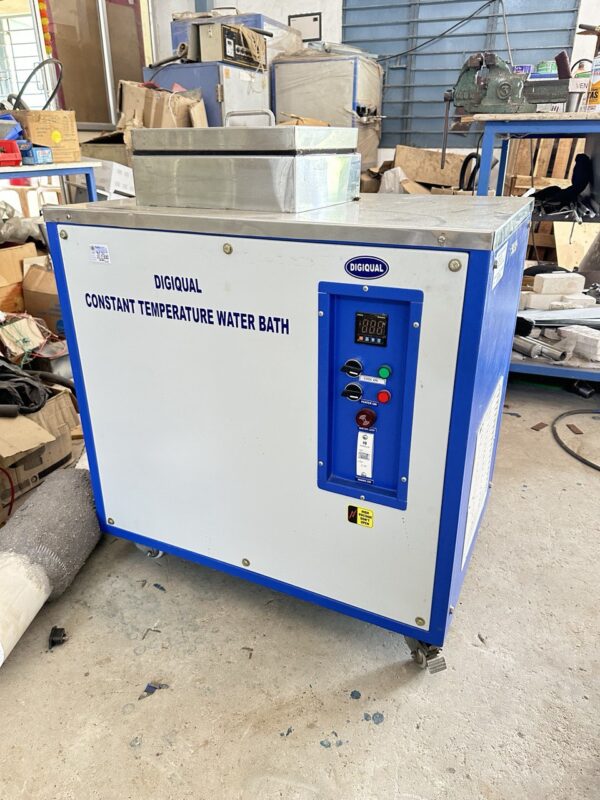

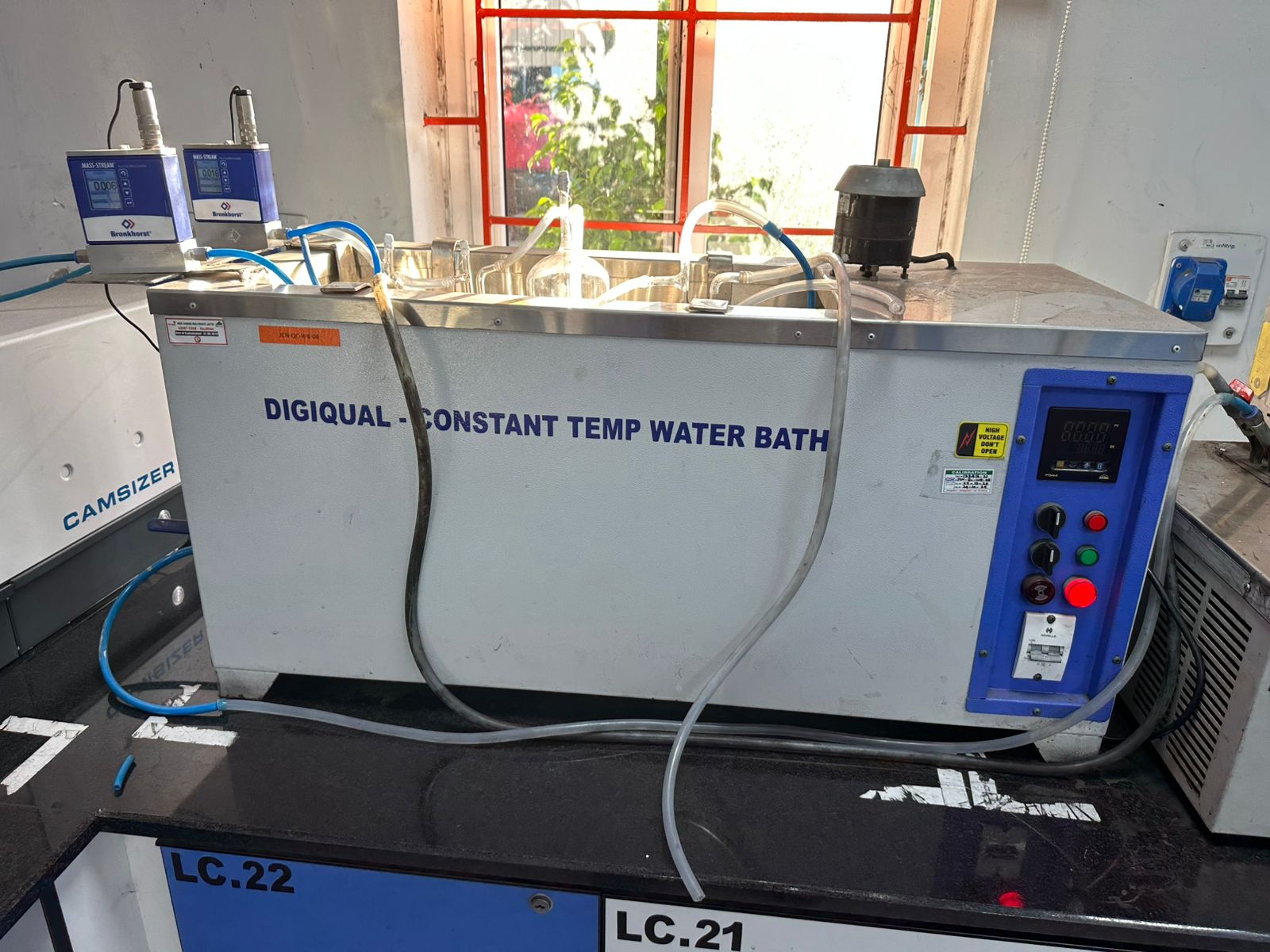

Constant Temperature Water Bath
Our Constant Temperature Water Bath is mostly used in medical, bio-chemical industries, research laboratories and solubility measurements.
Double walled chamber, inner made of thick stainless steel sheets and outer made of CRCA Sheets duly finished in powder coating. Inter space in between the walls tightly packed with special grade glass wool. Top Lid is made of stainless steel plate and provided with handle. Heating elements are chromium plated immersion type.
Temperature controlled by Digital PID Temperature Controller. A Medium speed stirrer with 1/20 HP motor is fitted to the unit for continuous stirring and thus maintaining uniform temperature throughout. Built in control panel accommodate, Digital PID Temp Controller, indicating lamps, On/Off switch. Designed to work on 220/230 volts a/c supply. Temperature Range: Ambient 5 * C to 100 °C.
Temp Accuracy : 0.5 * C
|Bath Size (litres) & Model No.||Temperature|
|10 – Model – DQ-WB-01||120 x 220 x 260 mm|
|25 – Model – DQ-WB-02||200 x 260 x 300 mm|
|40 – Model – DQ-WB-03||370 x 260 x 350 mm|
