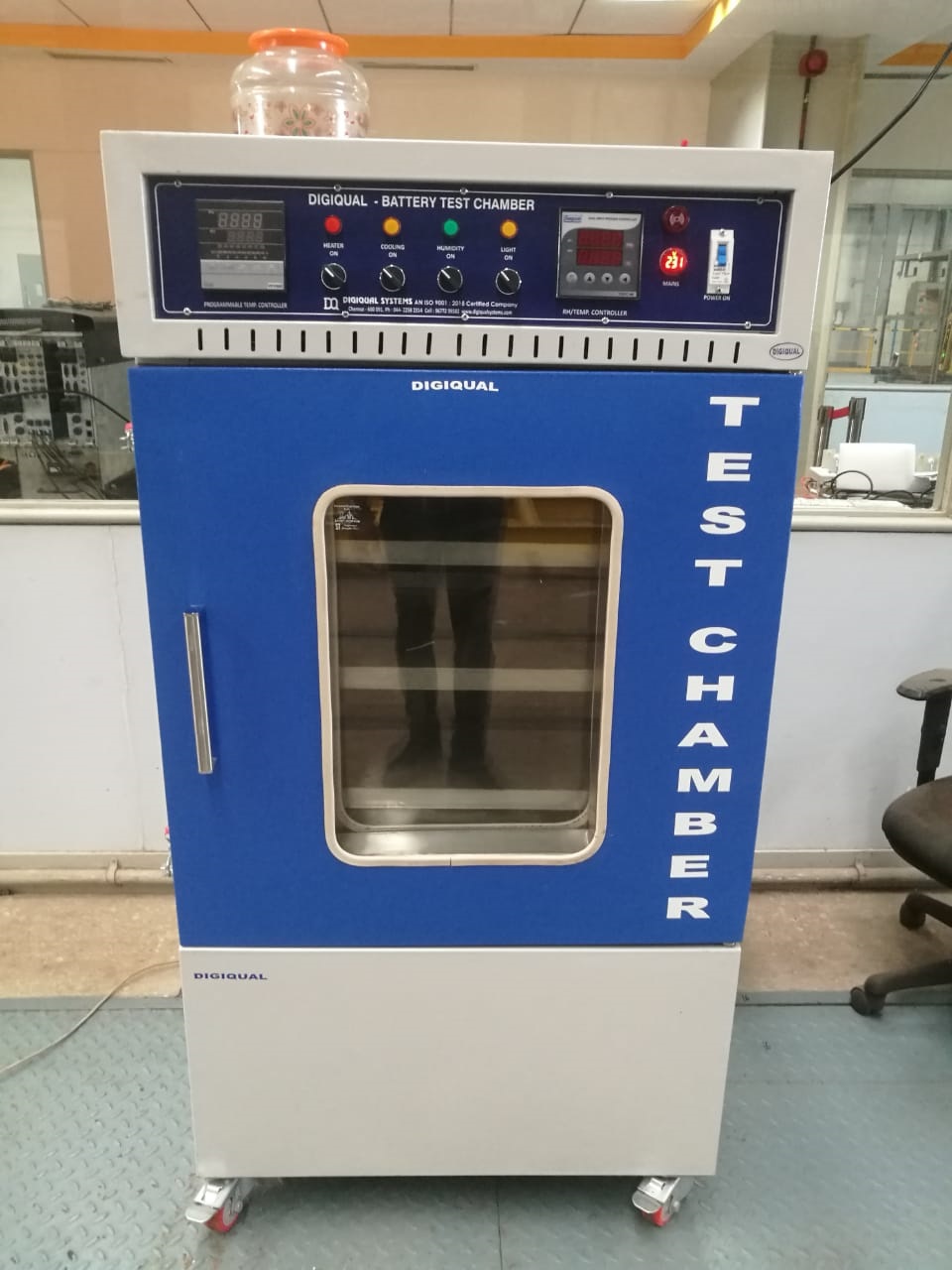

Battery Test Chamber
A Battery Test Chamber is a specialized environmental testing unit designed to simulate various temperature, humidity, and stress conditions to evaluate the safety, performance, and durability of battery cells, modules, or packs.
- CFC-free Refrigeration System by Kirloskar-Copeland compressor, air-cooled condenser, and accessories provided at the bottom of the chamber.

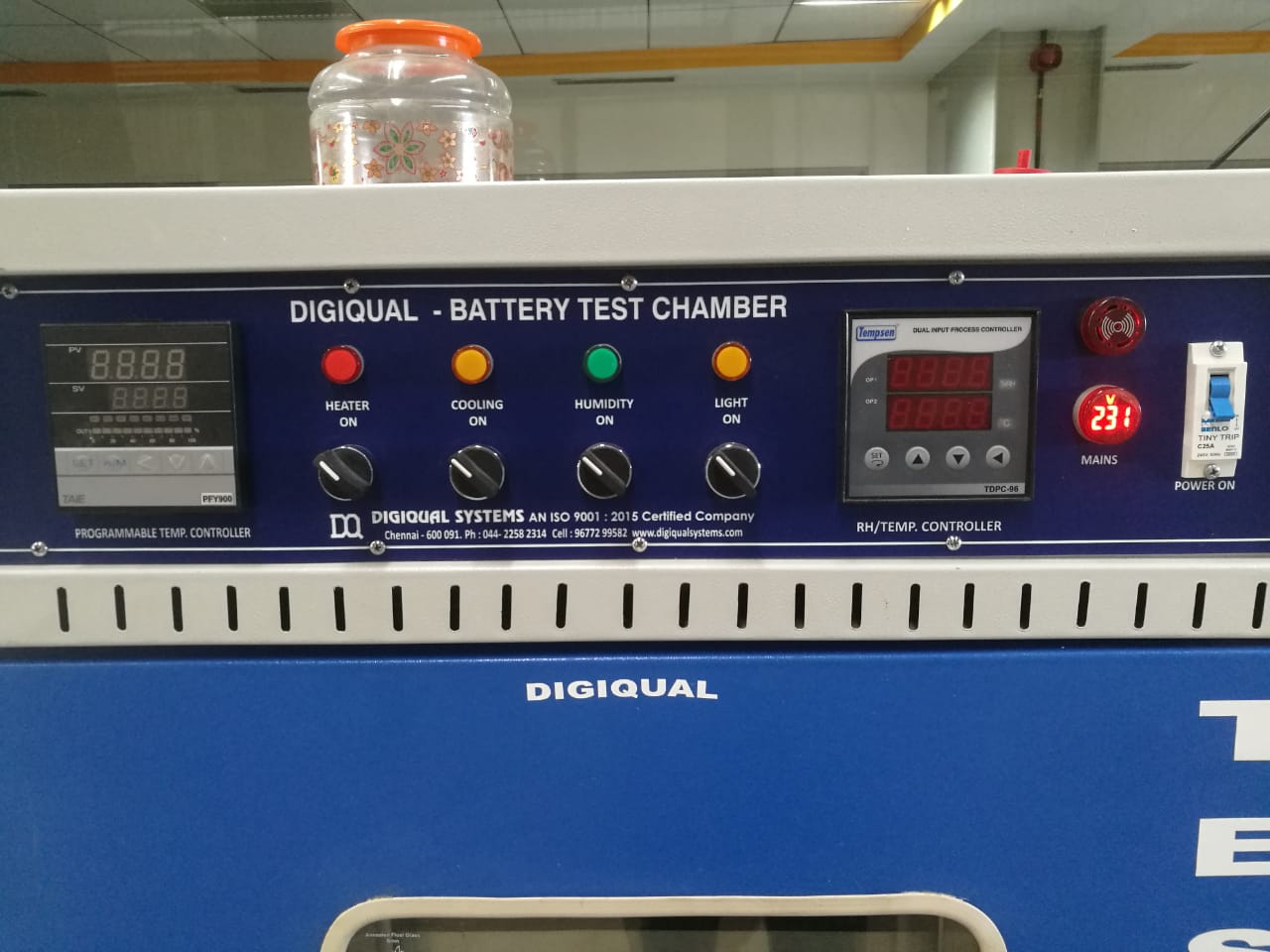

- Illumination is provided. The control panel consists of a digital temperature controller, indicating lamps, on/off switch, etc., located at the top. The unit is mounted on 4 castor wheels for mobility.
Voltage:230V Single-Phase 50
- Maximum Operating Temperature: 5°C to 60°C with ±2°C
- Highly accurate test results under uniform temperatures
- 3 Nos of grilled galvanized trays provided
- Inner chamber made of SS 304 to avoid rust formation
- Outer chamber made of MS with powder-coated paint
Technical Specifications:
| Inner Chamber Size | Capacity (Cu. Ft / Litres) | No. of Trays | Power Rating |
|---|---|---|---|
| 455 x 610 x 410 mm | 4 / 110 | 2 | 1.0 KW |
| 500 x 800 x 415 mm | 6 / 170 | 2 | 1.5 KW |
| 570 x 870 x 550 mm | 10 / 280 | 2 | 1.5 KW |
| 650 x 900 x 550 mm | 12 / 340 | 3 | 2.0 KW |
| 700 x 900 x 650 mm | 15 / 425 | 3 | 2.5 KW |
