Aluminium Melting Furnaces
Digiqual manufacture Melting Furnaces like Aluminium Melting Furnace, Lead Melting Furnace, Gold Melting Furnace, Silver Melting Furnace, Copper Melting Furnaces for wide range of laboratory and industrial applications.
Digiqual Manufactures Industrial Heavy Duty Melting Furnaces. With Latest Technology in Furnaces We Implement External coil Removable Type [ Silicon Carbide Heaters ] Furnaces.

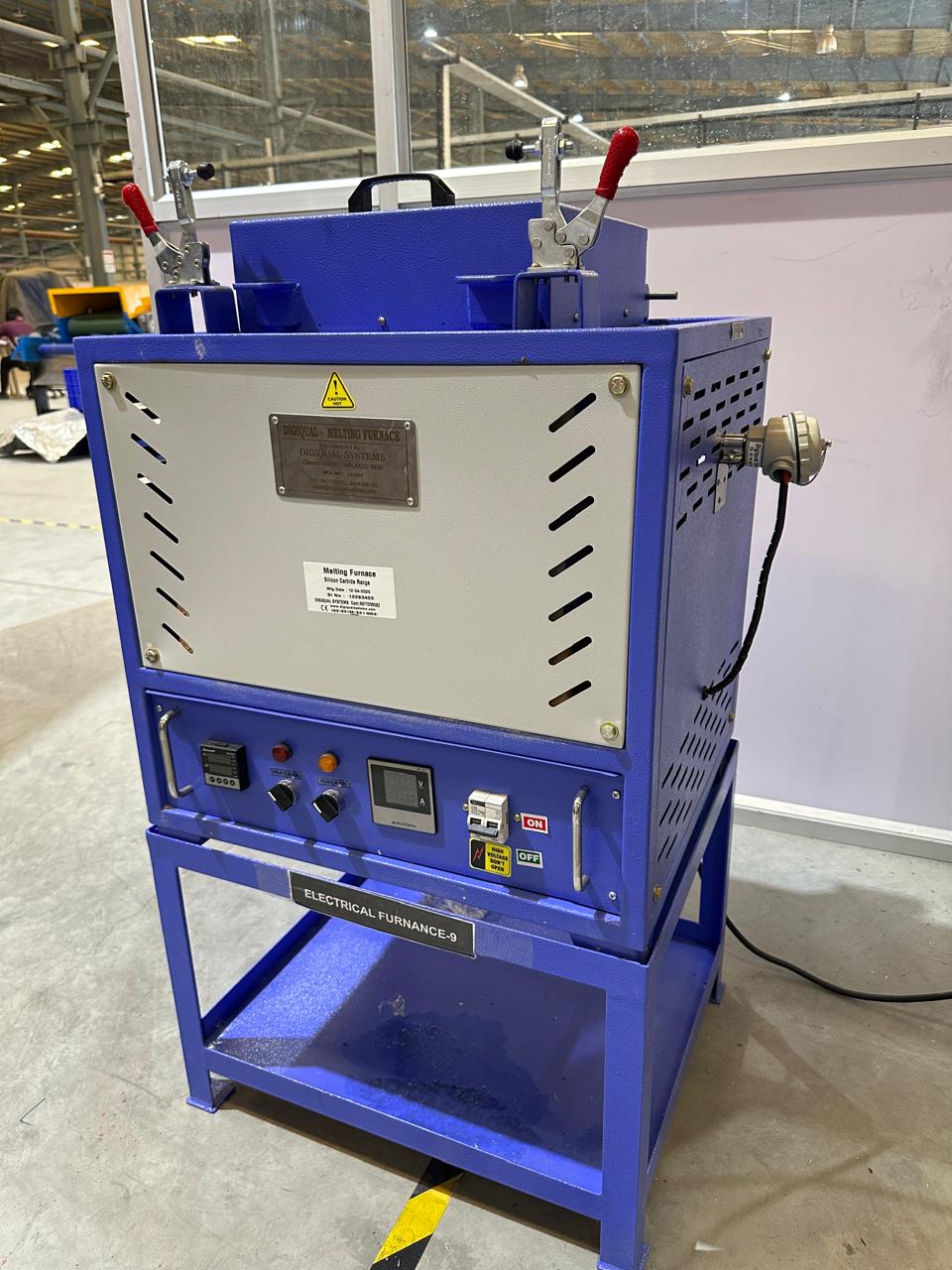

Aluminium Melting Furnace
Digiqual Systems manufactures Aluminium Melting Furnaces designed for efficient and uniform melting of aluminium and aluminium alloys. These furnaces are suitable for foundries, laboratories, research facilities and industrial applications. The furnace is designed with high-quality insulation and Silicon Carbide heating elements for reliable high-temperature operation.
Technical Specifications
| Specifications | Details |
|---|---|
| Furnace Type | Electric Aluminium Melting Furnace |
| Maximum Temperature | 1100°C |
| Heating Element | Silicon Carbide |
| Temperature Controller | Digital PID Controller |
| Temperature Sensor | R Type Thermocouple |
| Insulation | High Temperature Ceramic Fibre |
| Crucible | Suitable Aluminium Melting Crucible |
| Outer Body | Mild Steel Powder Coated |
| Operation | Electric Heating |
| Power Supply | 1PH or 3PH AC |
Capacity & Power Details
| Capacity | Wattage | Heater Type |
|---|---|---|
| 1 Kg | 4.5 KW | Silicon Carbide |
| 2 Kg | 6 KW | Silicon Carbide |
| 5 Kg | 9 KW | Silicon Carbide |
| 10 Kg | 14 KW | Silicon Carbide |
