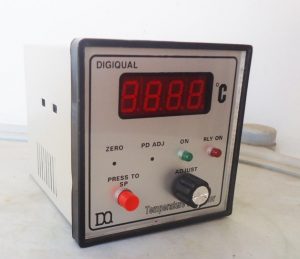

Digital Temperature Controller
Digiqual Manufacturers of Digital Temperature Controller with Potentiometer Setting Adjustment, MS powder Coated Box, Model: DQ 100 UN 96 Setting : Through Potentiometer, Front Acrylic Screened Name Plate, Metal Box, Heavy Duty Controller for Rugged Operations & for High Temp, Dust Atmospheres
| Specifications For Digital Temperature Controller | |
|---|---|
| Model No | DQ 100 UN 96 |
| Sizes Available | 96 x 96 x 110 mm , 72 x 72 x 110 mm |
| Inputs | Pt-100,J, K,R,S Fixed |
| Control Type | PD,On/Off |
| Display | 4 Digits , 0.56″, Red LED. |
| Control O/P | Relay 6 A & 10 A. |
| Setting | Through Potentiometer |
| Supply | 230VAC.±10%, 50 / 60Hz |
| Range | 0~1200°C (Depending on input) |
