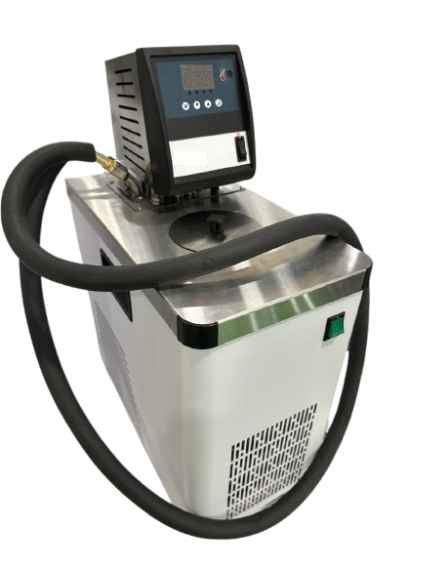

Mini Chiller
A Mini Chiller is a compact, efficient cooling system designed to provide precise temperature control for laboratory instruments and processes. It is commonly used in scientific, medical, and industrial labs to maintain the required cooling conditions.
Key Features:
- Compact Design: Space-saving footprint ideal for benchtop or floor use in laboratories with limited space.
- Temperature Control: Accurate and stable temperature regulation, typically ranging from -10°C to +25°C (varies by model).
- Digital Display: Easy-to-use digital control panel for setting and monitoring temperature.
- Low Noise Operation: Quiet performance suitable for laboratory environments.
- Safety Features: Over-temperature protection, low-level alarm, and automatic shut-off to protect both the chiller and connected devices.
| Specification | Details |
|---|---|
| Design | Table Top Design |
| Working temperature range (°C) | -20 °C to +100 °C |
| Ambient temperature range (°C) | 25°C to 40°C |
| Temperature stability (°C) | ±0.03°C |
| Pump pressure (mbar) | 300 mbar |
| Pump flow rate max. (lpm) | 12 lpm |
| No. of set points | 1 |
| In / Outlet connection nozzle (outside) mm | 8 & 12 mm |
| Pressure Adjustment | Optional |
| Refrigerant stage 1 | R134 a |
| Power supply | 230V; 50Hz |
| Power plug (amps) | 5 amps |
| Temperature | Cooling capacity (Ethanol) |
| Requirements | DQ-MC-01 | DQ-MC-02 |
|---|---|---|
| Bath volume (L) | 5 | 9 |
| Overall dimensions (WxDxH) mm | 245 x 475 x 620 | 360 x 450 x 630 |
| Weight (Kg) | 23 | 26 |
| Power plug (amps) | 5 | 16 |
| 20°C | 0.3 kW | 0.8 kW |
| Heater power max (kW) | 1 | 2 |
| Current max (amps) | 6 | 10 |
