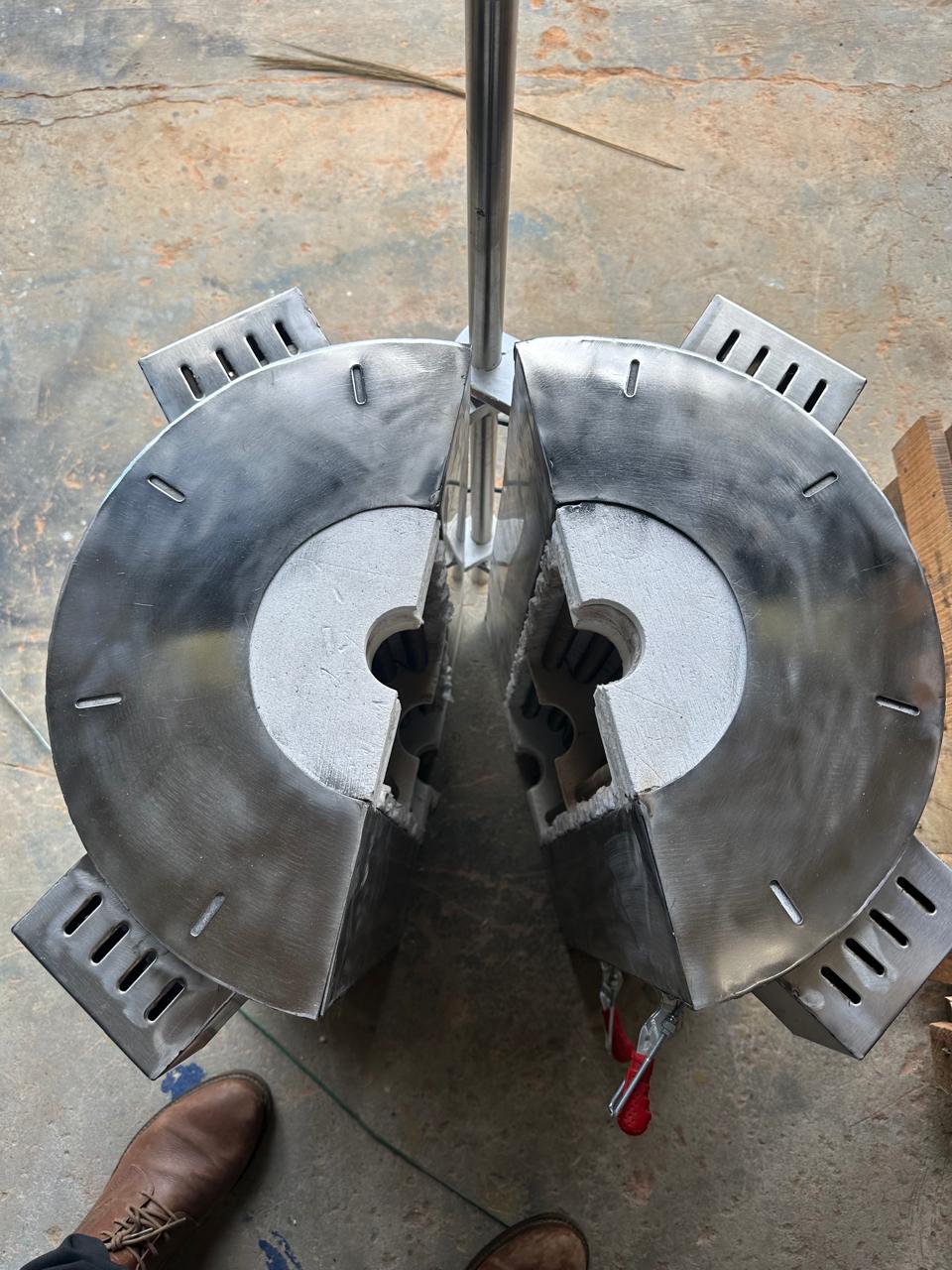

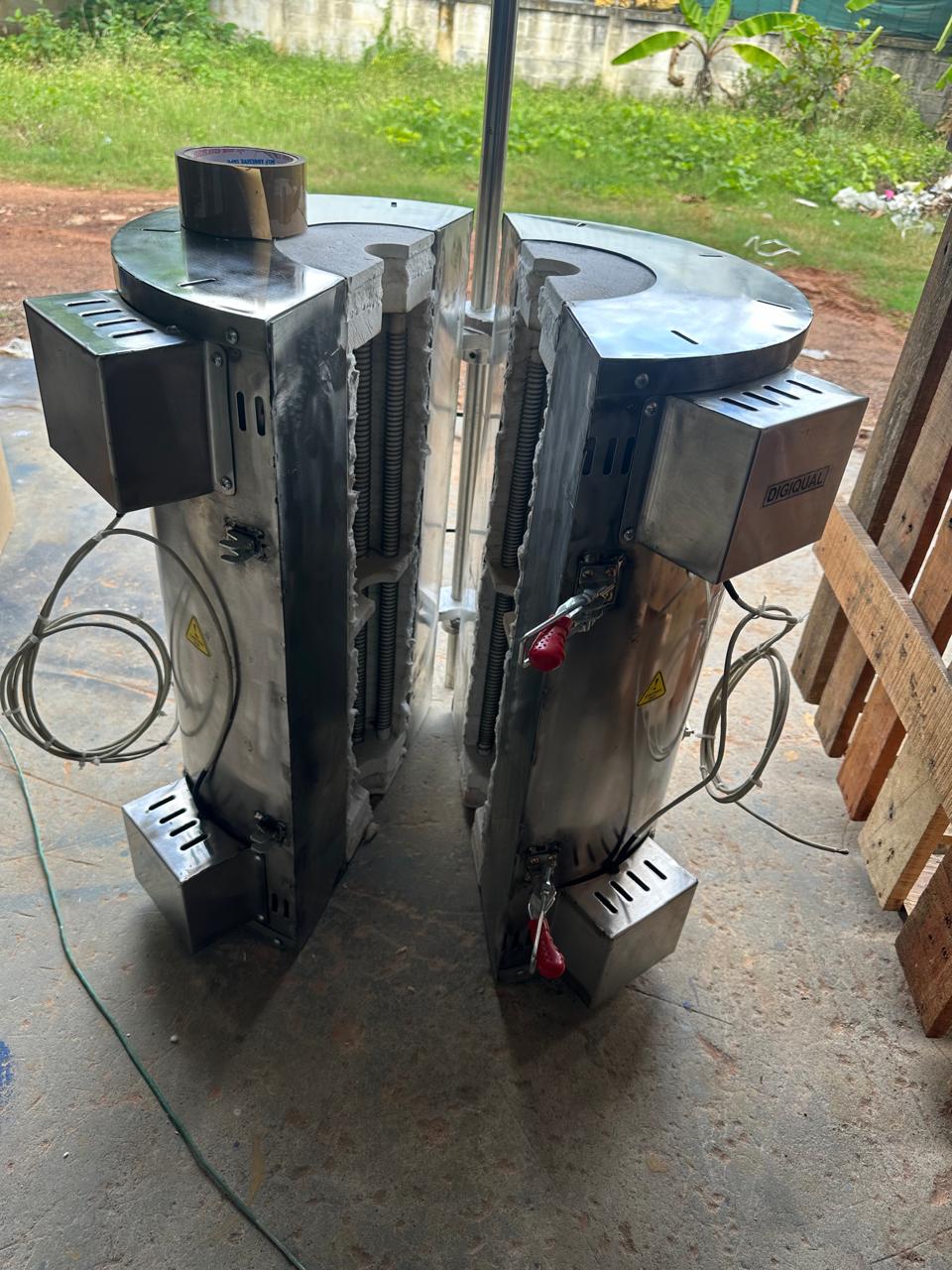

Vertical Split Furnace

Vertical Split Furnace

Digiqual Systems Manufacturers Vertical Split Furnace in Different Dimensions & Temp Range up to 1400 * C. In Vertical Split Furnace Outer Casing Fabrication Made out of SS 304 , 2mm Sheaths & of Double chamber . Outer Chamber for Air Gap & to reduce Skin Temperature. In Vertical Split Furnace Furnace Tube is of High Quality Alumina Ceramic Tube.

Enquire Now

Share:
In Vertical Split Furnace Heating Elements are Kanthal A1 & Silicon Carbide.
Technical Specification
Operating Temperature range : 600-1000 °C
Max. Temperature : 1100* C
Temp Accuracy : +/- 1* C.
Operating Voltage : 230 volts, Single Phase
  1. Microprocessor Based Programmable Temperature
  2. Controller with Thyristor Output for Better Accuracy.
  3. End Fittings for Inert Atmosphere Purging
  4. Quartz Tube with End Fittings.
Inner Dimensions Temp Range Temp Range
75 mm Dia x 300 mm Length 1100 * C 1400 * C
110 mm Dia x 300 mm Length 1100 * C 1400 * C
150mm Dia x 300 mm Length 1100 * C 1400 * C
