Humidity Test Chamber

Humidity Test Chamber

Digiqual Laboratory Chamber Manufacturer in Chennai providing best Laboratory Chambers like, Humidity Test Chamber, Hot and cold Chamber, Environmental Chamber, Battery Test Chamber, Humidity Test Chamber and more.

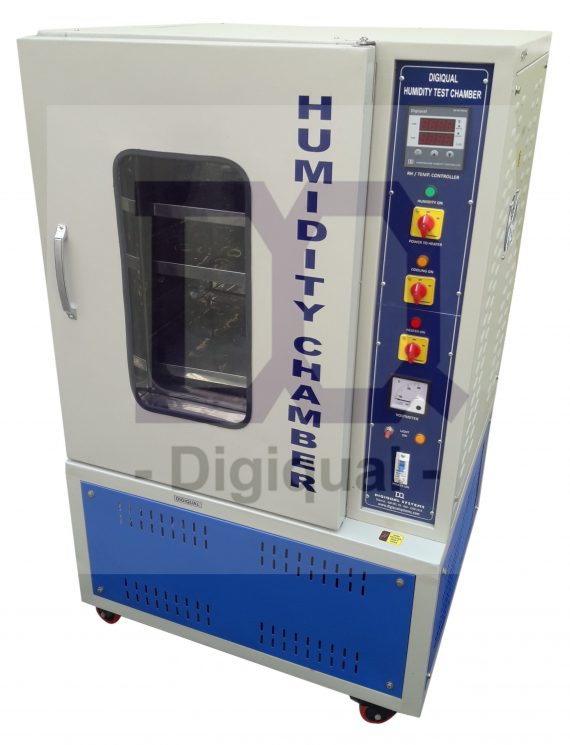

Digiqual Humidity Test Chamber is a double walled chamber. The inner chamber is made of 304 stainless steel material with mirror finish. The Outer wall is made of Mild Steel with Powder coating finish or alternatively Stainless steel 304 with or without epoxy powder coating finish for excellent looks.

The humidity test chamber is provided with a double walled door with a toughened glass viewing window which allow inspection of samples without disturbing the temperature inside the chamber. The door is mounted on heavy duty plate hinges with effective locking arrangement and seals against atmospheric infiltration by resilient magnet gasket. A second door made of clear Acrylic will be provided mounted on SS hinges and with magnetic catch to enable full visibility of the inner chamber keeping minimum loss of the test process condition.

Humidity is controlled by Humidistat, having range 0% to 100% but humidity can be obtained from atmospheric humidity to 95% with sensitivity of ± 3%. Temperature controlled by digital temperature controller from ambient 5 ºCto 60 °C with an accuracy of ± 1 °C.

Enquire Now

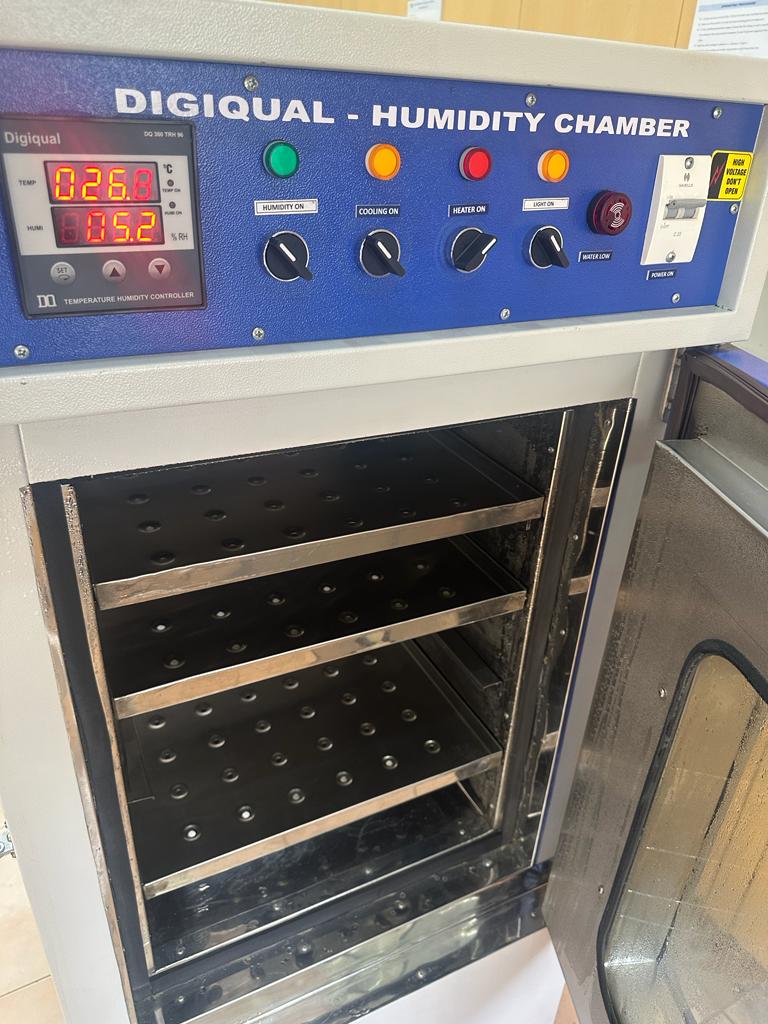

Humidity test chamber is attained by the mist of water that is circulated inside the chamber for maintaining 40% to 95% humidity. A water reservoir will be provided with Auto low-level water cut off device and alarm. A compact control panel with switches, Indicating lamps, Temperature controllers are fixed at the side of the chamber for operational convenience.
Humidity Test Chamber – Specifications
No.Trays 2 or 3
MOC of Trays SS 304
Temp. Controller Microprocessor based PID Type
RH Controller Microprocessor based PID Type
Power Supply 230 V AC, Single Phase.
Temperature Range 15 to 60 Degs C ± 1 Degs C
Humidity Range 45% to 95%,± 3% RH
Temp. Range for RH Operation 20 to 60 Degs C Only.
Standard Chamber Size Power Rating
455 × 455 × 710 mm 3.0 kw
605 × 605 × 605 mm 4.5 kw
605 × 605 × 910 mm 4.5 kw
Option
Digital Controller with RTD Sensor: ± 2 ° C.
Digital PID Controller for accuracy: ± 1 ° C
Air Circulating Fan Assembly: Timer
