Digital Humidity Cum Temperature Controller

Humidity Temperature Controller

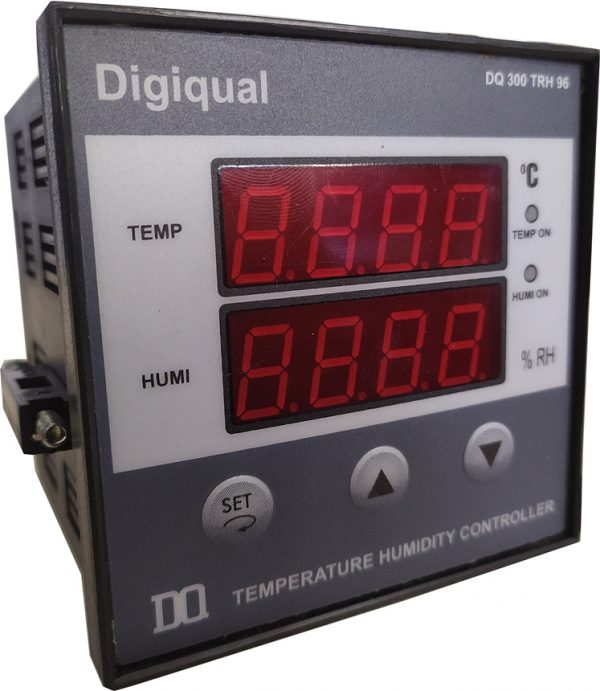

Digiqual Manufacturers of Digital Humidity Temperature Controller Model : DQ 300 TRH 96

Specifications For Digital Humidity Temperature Controller
Model No DQ 300 TRH 96
Sizes Available 96x96x110 mm
Inputs Pt 100 sensor / 0~3VDC voltage from RH Sensor
Display Dual 4+ 4 Digits(Temp & RH) , 7 Segmented Red LED
Set points 1no for RH & 1no. for Temp
Relay Output 2 NO / 2 NC , Individual for Temp & RH
Auxiliary supply +5V DC, 20mA for RH sensor supply
Hysterisis 01~10°C
Control Action On-Off /PD
Supply 230V Ac. ±10%, 50 / 60Hz
Sensor Temp & RH Sensor with 2 mtrs long Cable.
