Lead Free Soldering Pot/ High Temperature Tinning Pot

Lead Free Soldering Pot/ High Temperature Tinning Pot

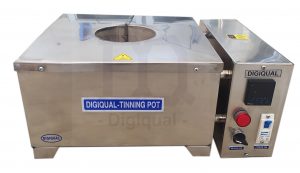

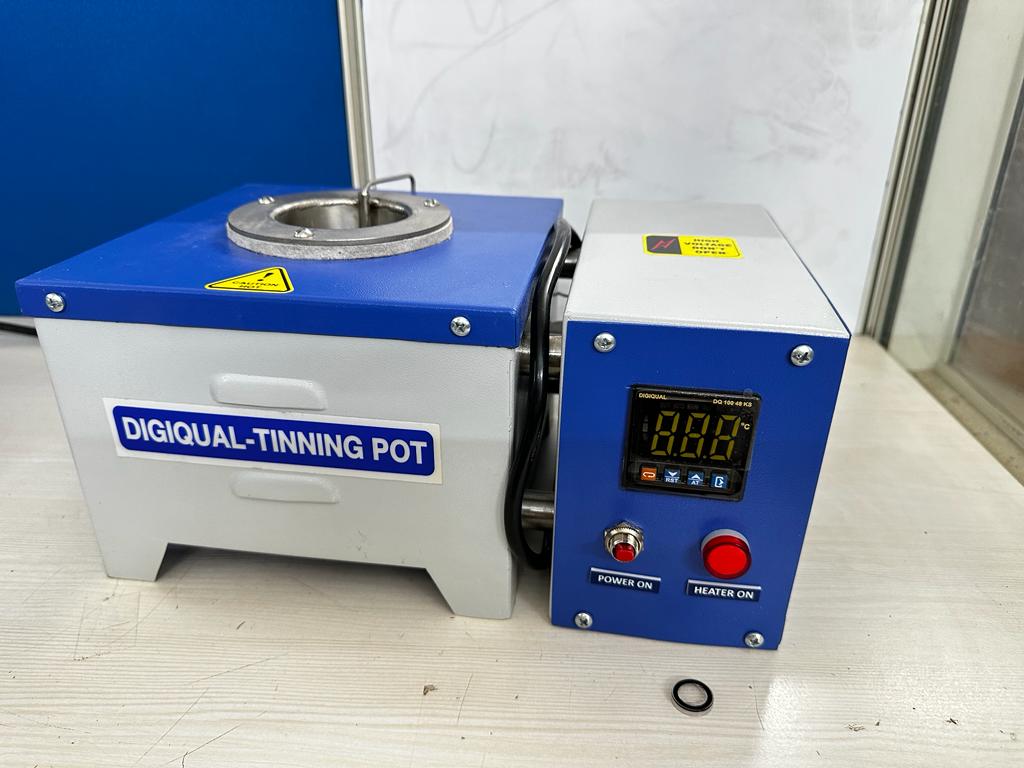

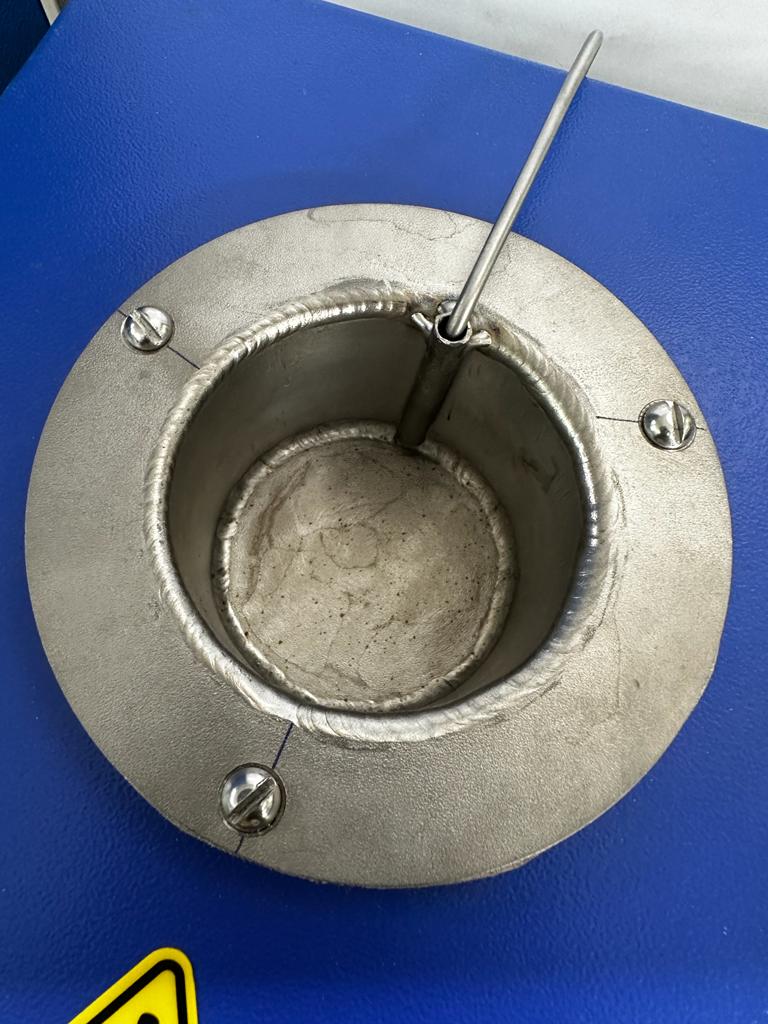

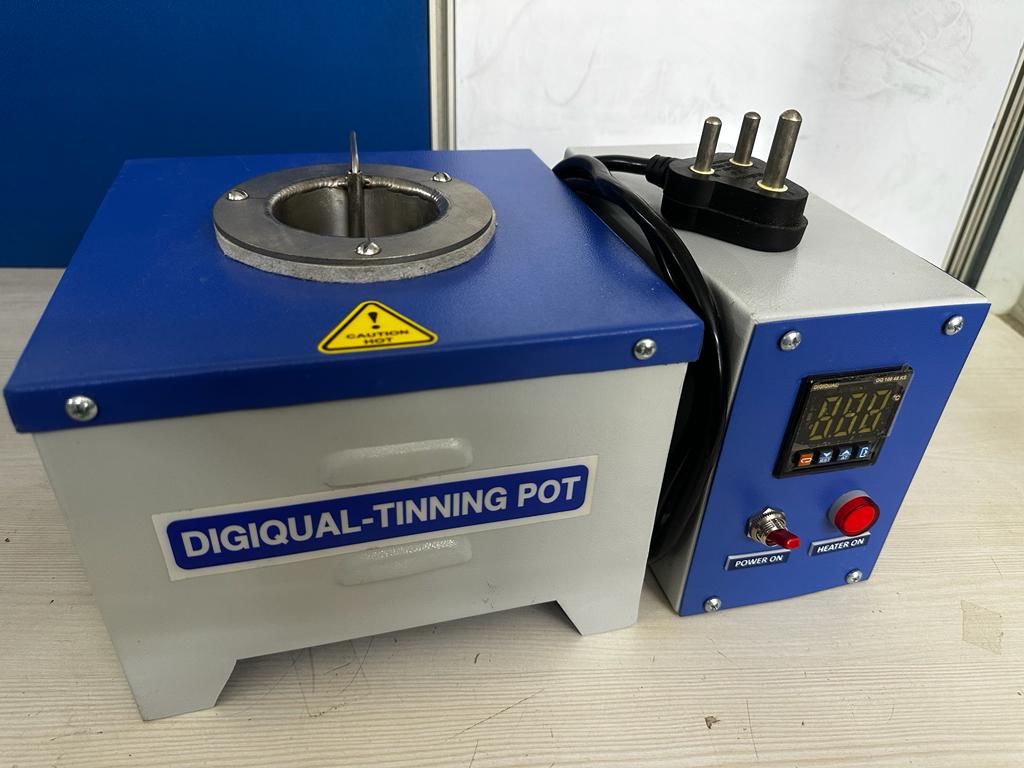

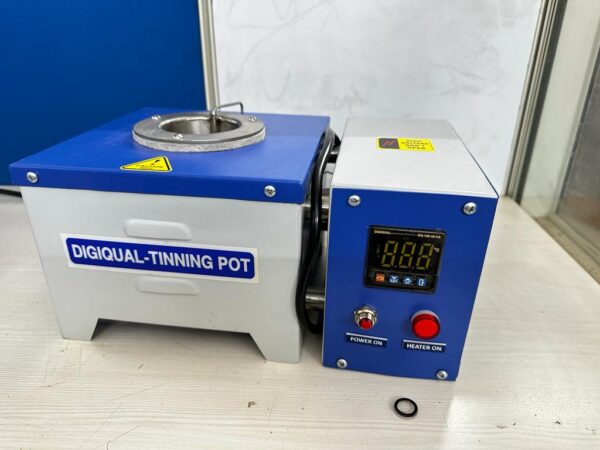

Digiqual Manufactures High Temperature Tinning Pot / Dip soldering machine and Lead Free Soldering Pot. Outer chamber made of mild steel powder coated. Inner Chamber ( Pot ) is fabricated out of specially procured SS 316 Material or Titanium to with stand metal & high temperature.

Heating Element is Developed out of Ceramic type with Nicrome Heater for high temperature & long life. Space Between Pot & Chamber is insulated with High alumina Ceramic Blankets which is used for Furnaces. By using these Blanket Insulation Digiqual Tinning Pots are of long life, durable and heavy Duty.

Technical Specifications
Pot MOC SS316 or Titanium of 3mm Wall Thickness
Outer MS Powder Coating
Heating Element Ceramic Type Heater
Watts 500 to 1500 W according to size
Temp Range Maximum 350* C
Temperature Controller Digital PID Temp Controller
Thermocouple Mineral Insulated 3 mm dia Thermocouple for Long Life
Accuracy +/- 1 * C
Available Sizes Max Temp Wattage
150 x 100 x 50 mm 500 * C 1500 W
200 x 100 x 50mm 350 * C 750 W

Application

  • Especially for Battery Lug Coating
  • Heavy Wiring Lugs Coating
  • Automobile Special Application

Note

  • For 60 / 40 Lead Go for SS 316 Pot.
  • For ROHS Lead Go for Titanium Pot.
