Welding Electrode Drying Mother Oven

Welding Electrode Drying Mother Oven

Welding Electrode Drying Mother Oven
We offers more than 10 models of Welding Electrode Drying Mother Oven which is also called Stationary ovens. With different size, capacities and features some use for holding some use for drying and baking process. Stationary Electrode Ovens means a oven which is fixed at one place which cannot move easily. It is used to preheat the electrode after opening it from box. Like low hydrogen electrode it required 250-300 Deg C for re baking atleast for 1 hour before it use. Temperature and heating time may vary from electrode to electrode.

Technical Specification
Model No : DQ-WMO-01
Electrode capacity : 50 Kg {110 Lbs}
Voltage : 110, 220 ,480 {Standard}
Wattage : 4500 watts
Temperature range : 400 Deg C
Thermostat : Digital
Temperature controller : Yes

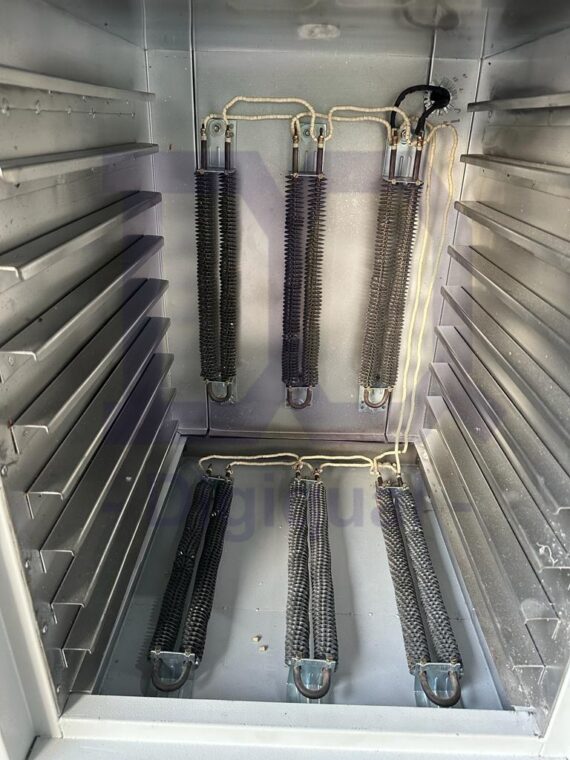

Heating element : SS Tubular
Insulation : 100 mm Ceramic Wool
Inner Chamber {mm} : 480 x 480 x 480

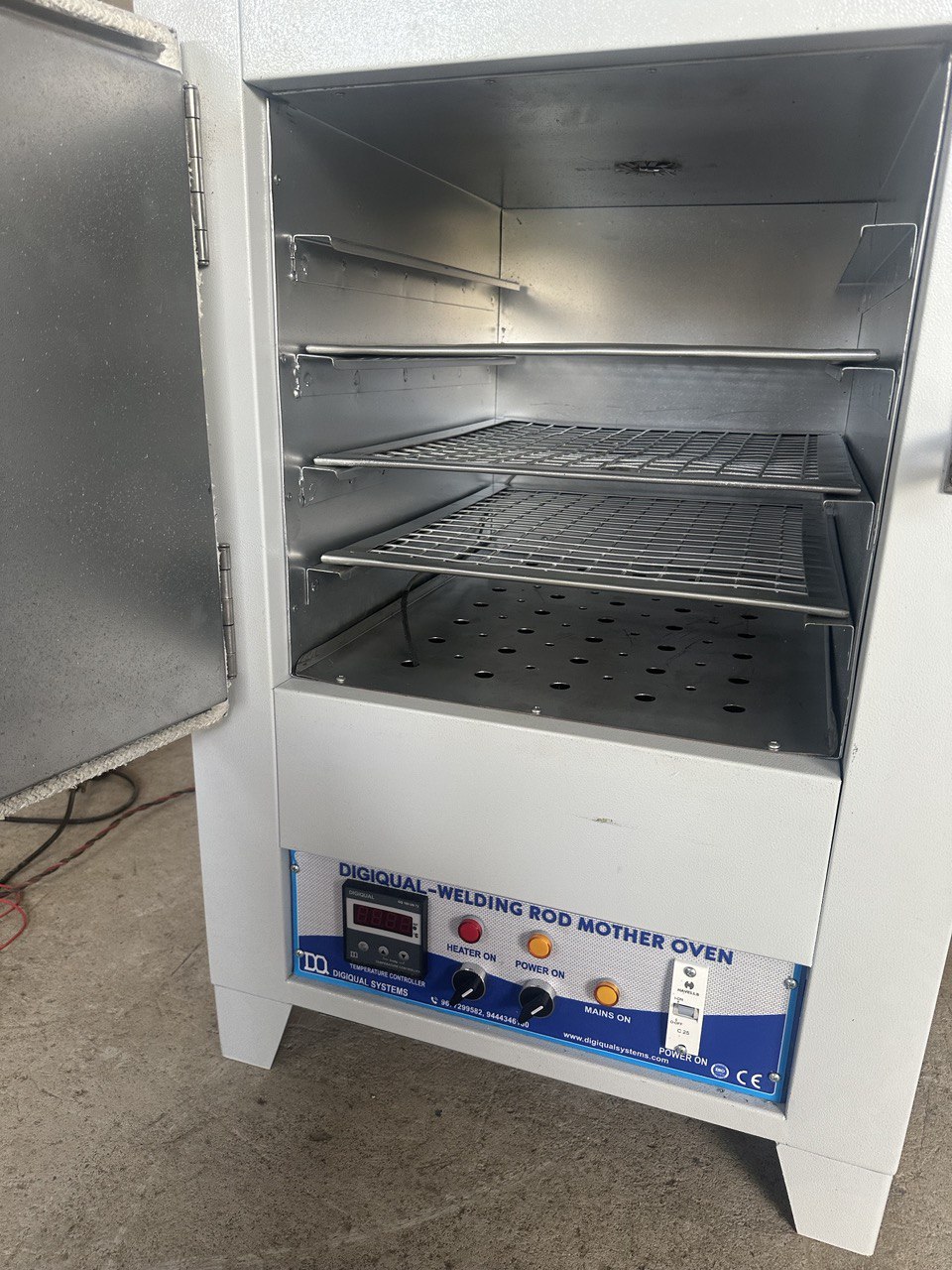

Trays : 5
Body : Mild Steel / Stainless Steel
Light indicator : Yes
Air circulation : Natural Convection
Color outer side : Epoxy Coating
Color inner side : Heat resistant aluminium paint
Shape : Square
Handle : Fix Handle
Net Weight : 180 Kg
